Case Study · Western Sydney, NSW
Western Sydney
Smart Home
A complete whole-home technology ecosystem — home theatre with star ceiling, six AV zones, smart lighting, automated blinds, and enterprise security, all unified under Control4.
6
AV Zones
7.2ch
Theatre System
30+
Smart Keypads
11
Security Cameras
Project Overview
A grand home designed around the way you live
This premium Western Sydney residence called for a fully integrated smart home solution — one that would bring together entertainment, lighting, climate, security, and communications into a single, intuitive system.
Blutek designed and delivered a comprehensive Control4 ecosystem across the entire home, spanning a dedicated 7.2-channel Atmos-ready home theatre with fibre optic star ceiling, five additional audio and visual zones, and 30 custom-engraved lighting keypads controlling over 80 circuits.
An enterprise-grade network backbone, Ness M1 Gold alarm system with 11 cameras plus a PTZ dome, and Daikin HVAC integration complete the picture — a home as secure and comfortable as it is entertaining.

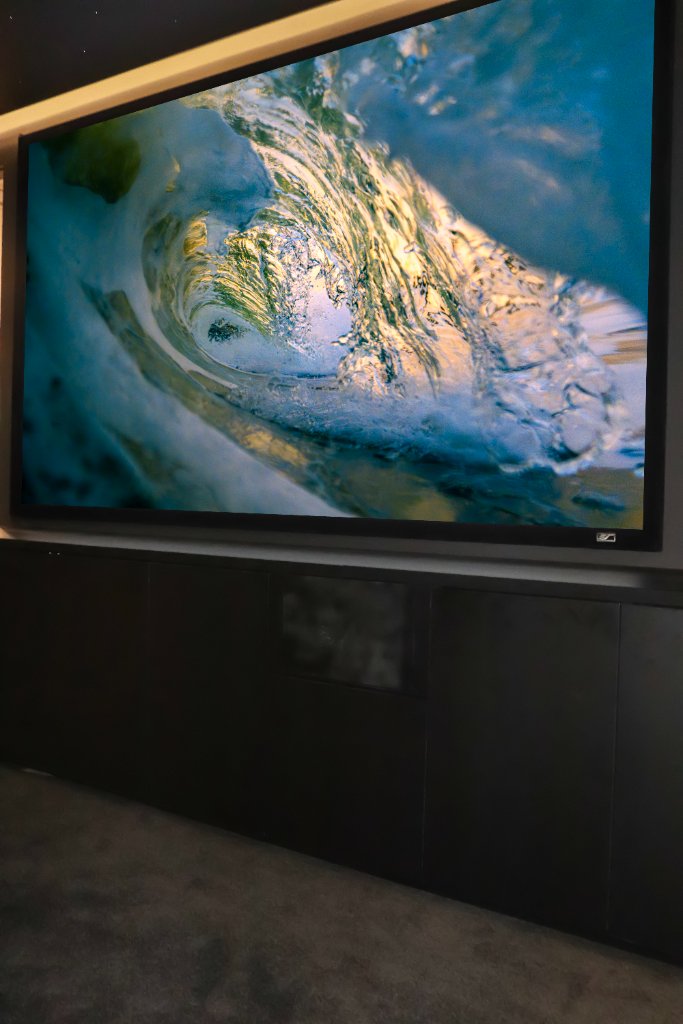

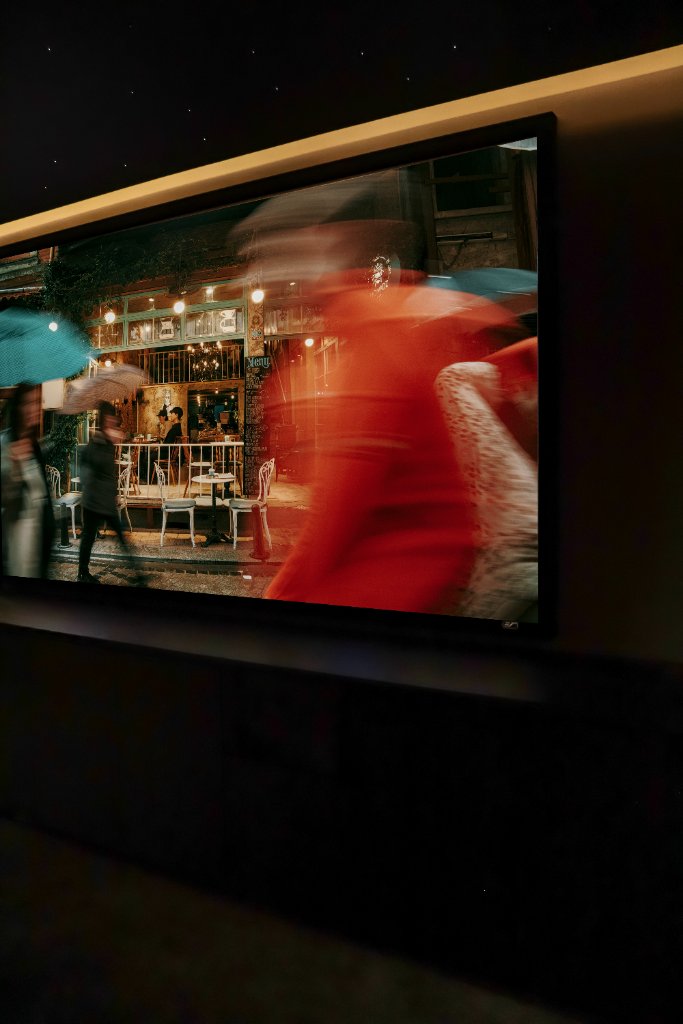

The Theatre Room
A dedicated cinema — with star ceiling

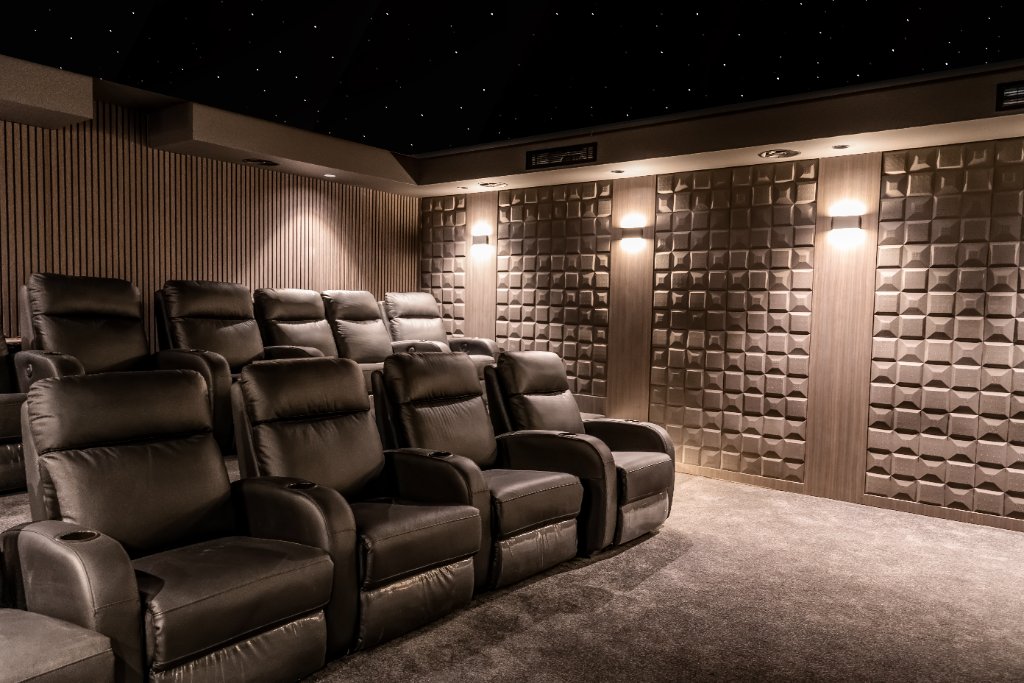

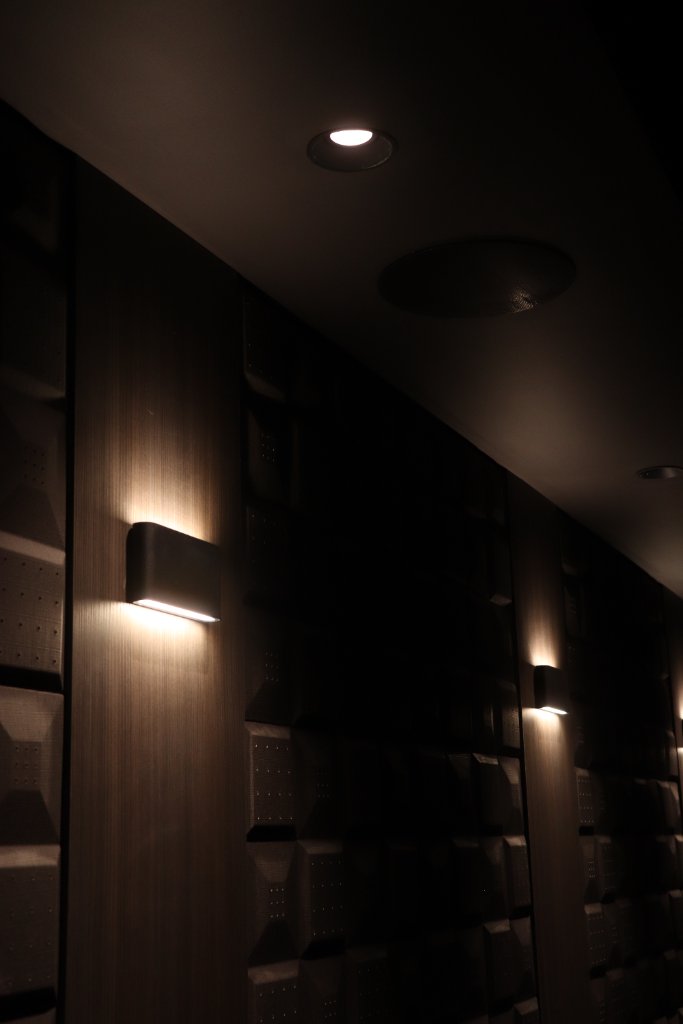

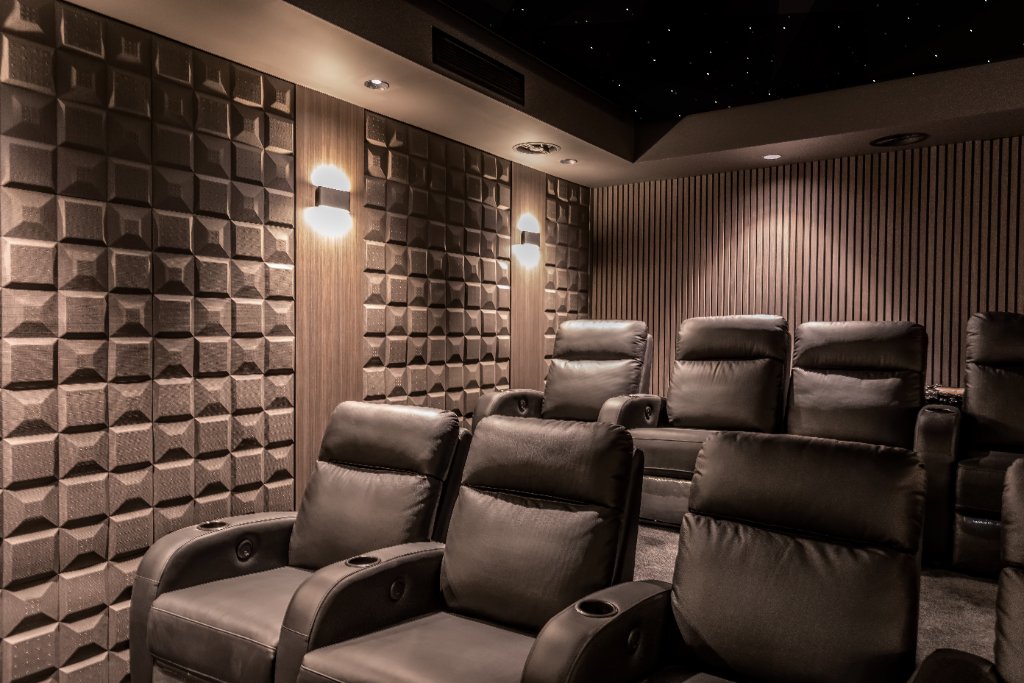

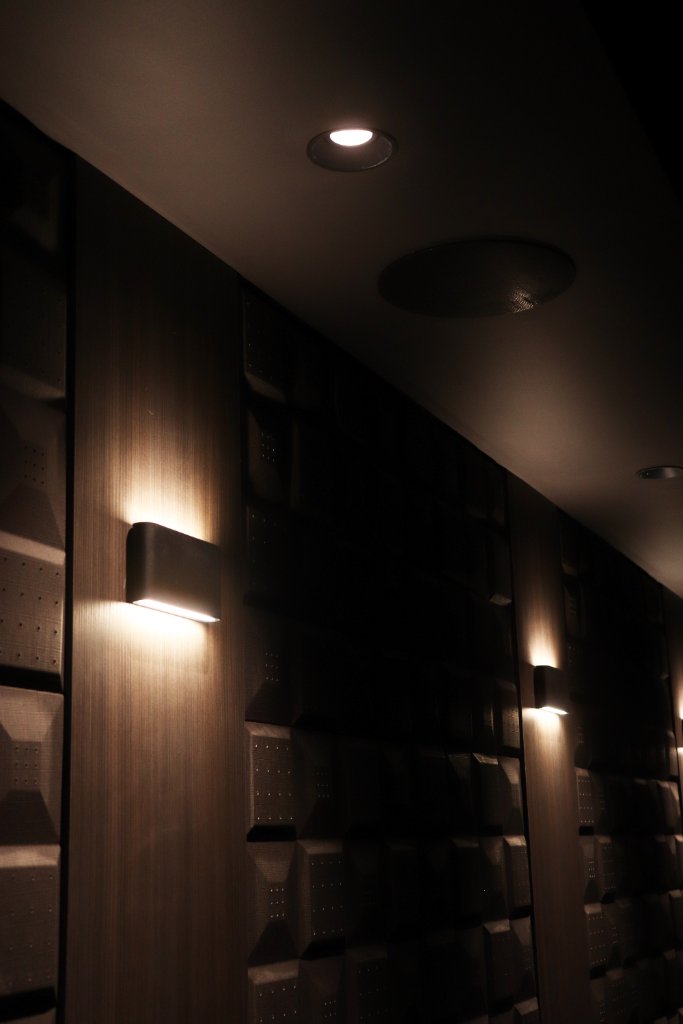

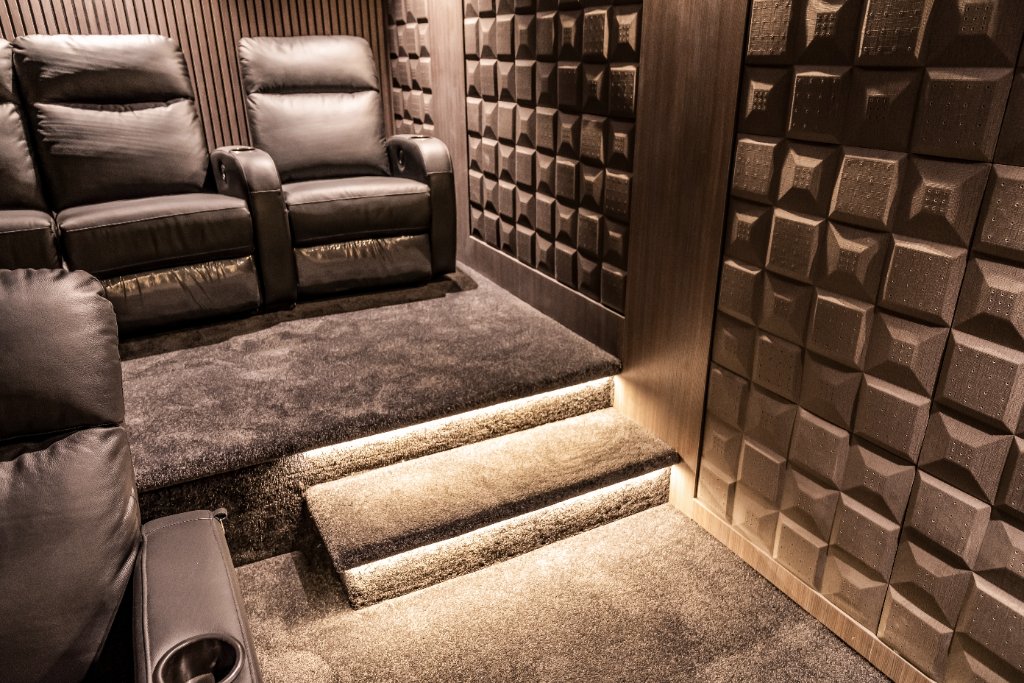

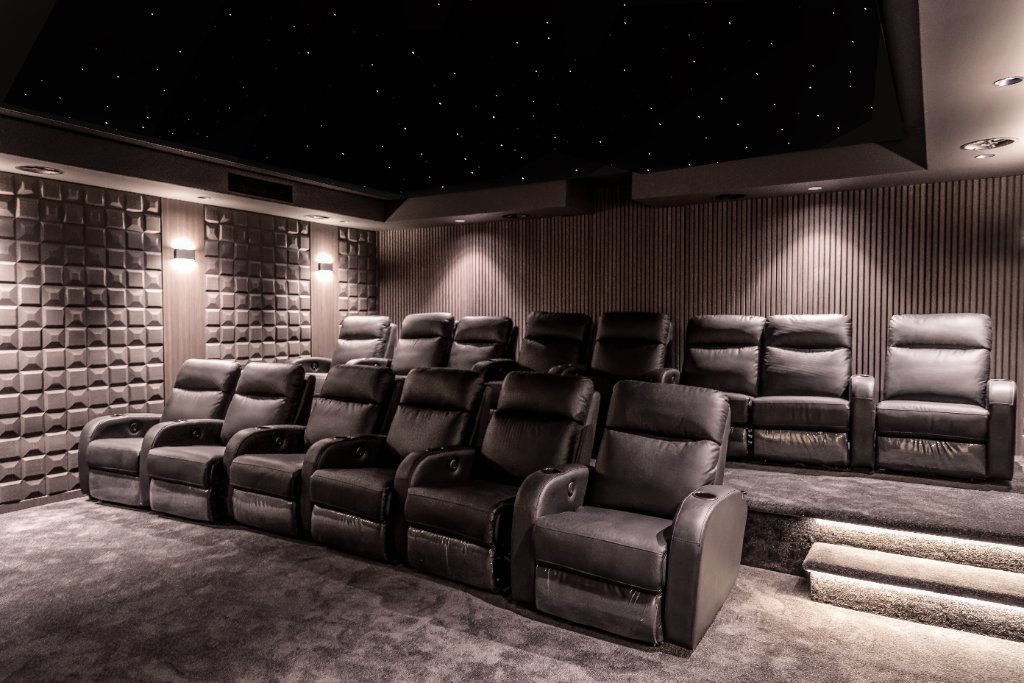

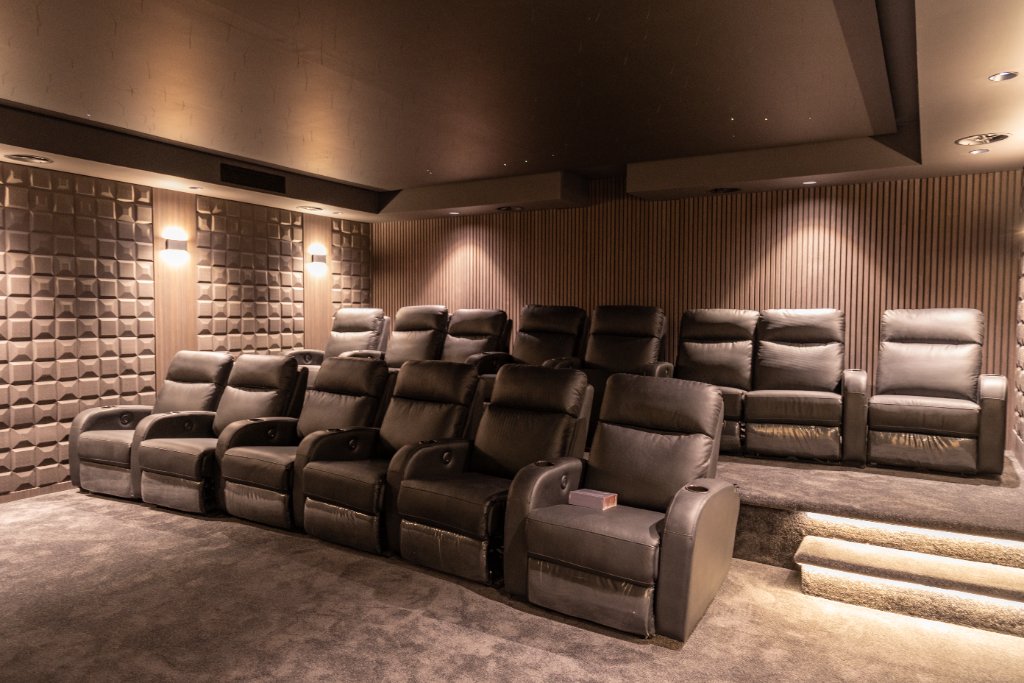

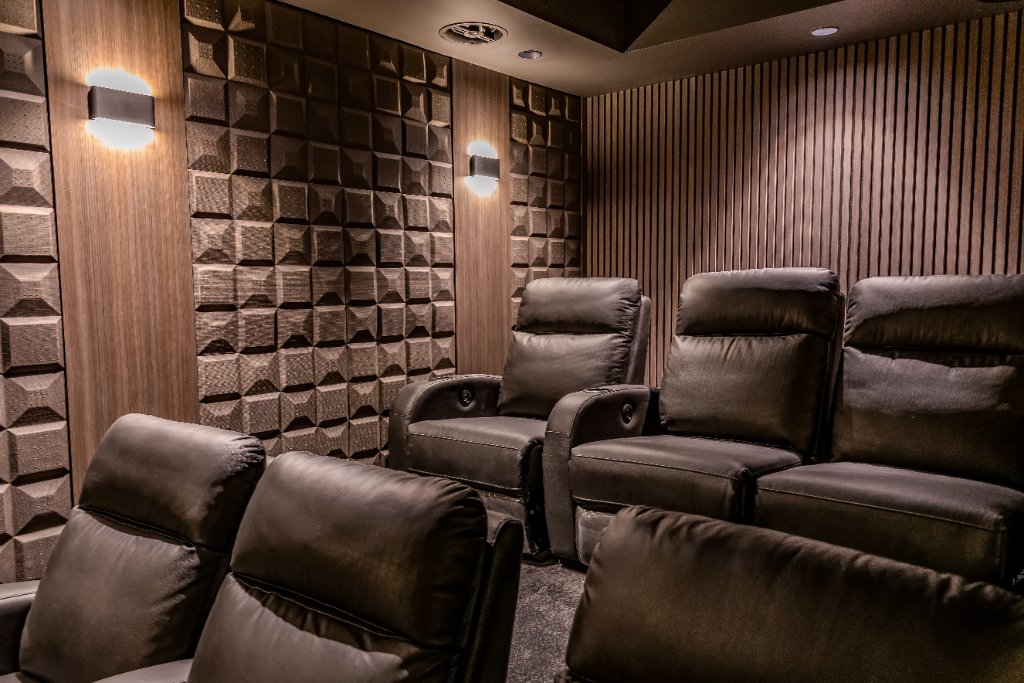

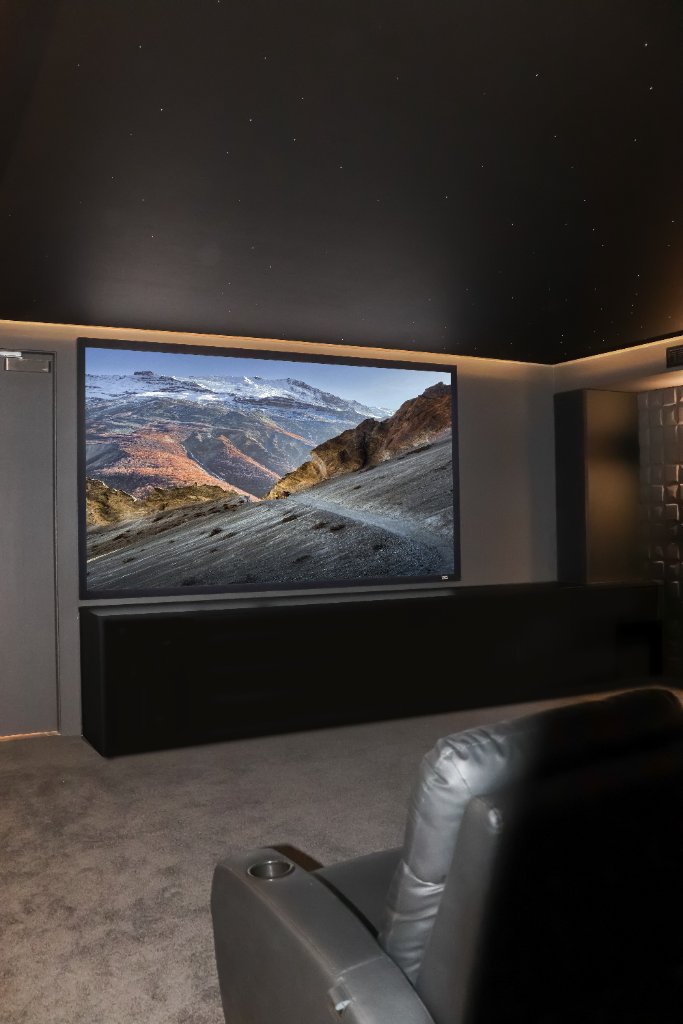

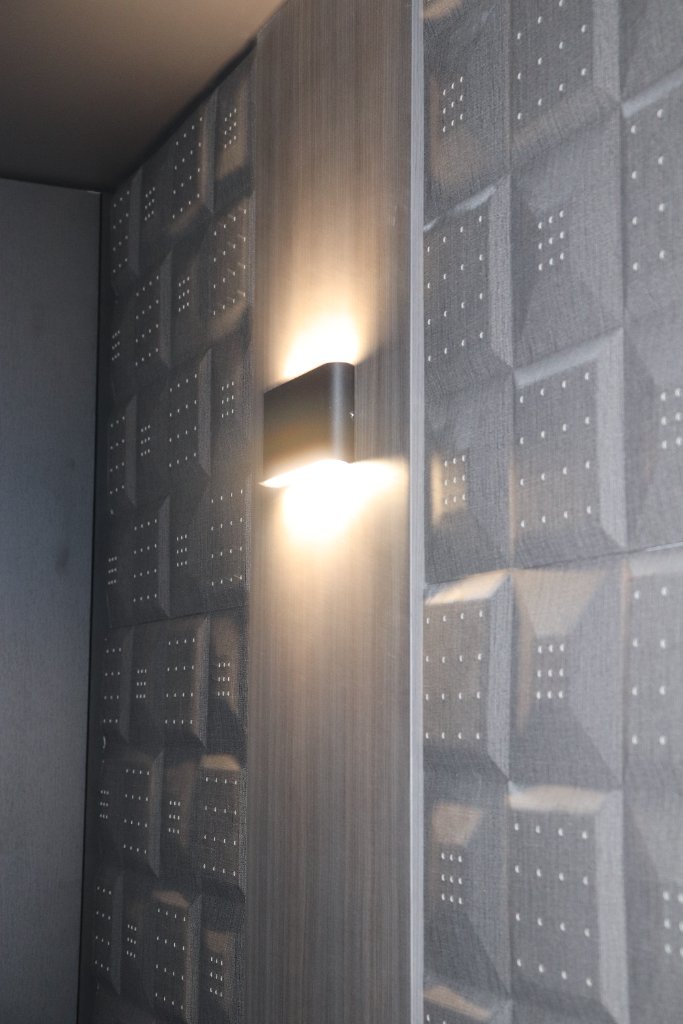

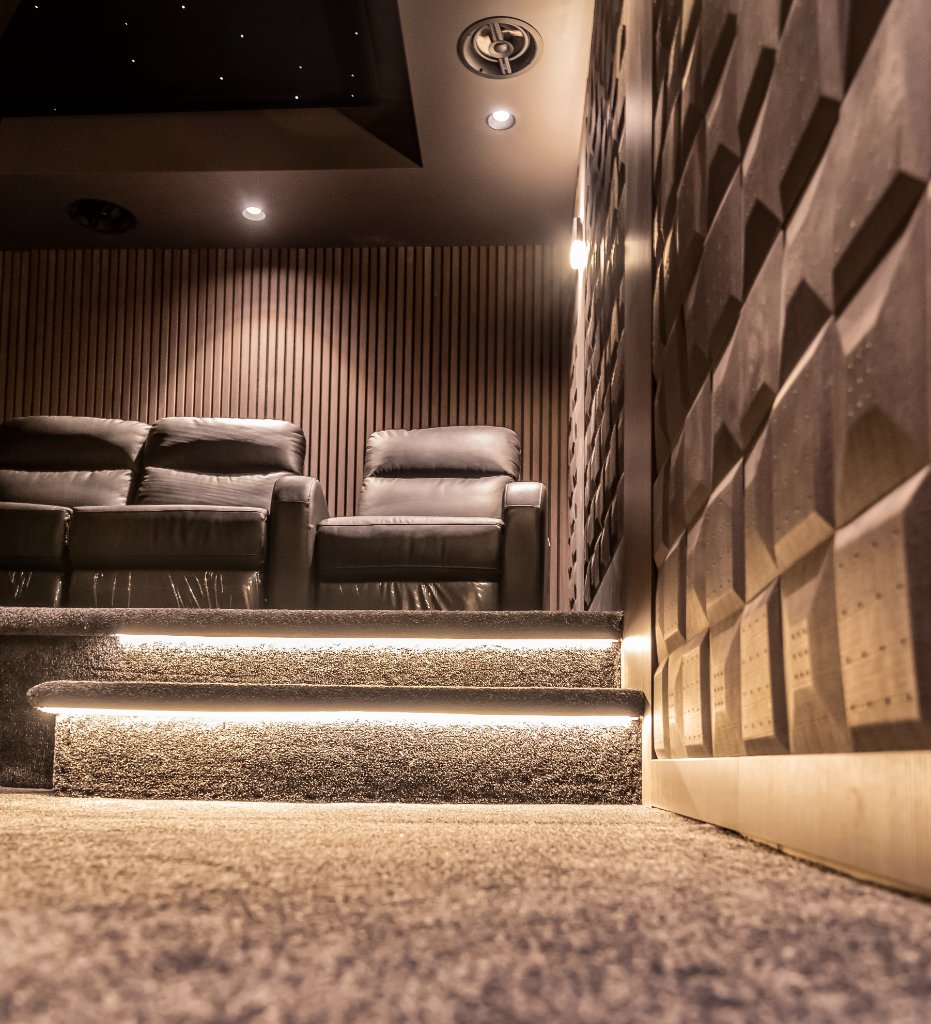

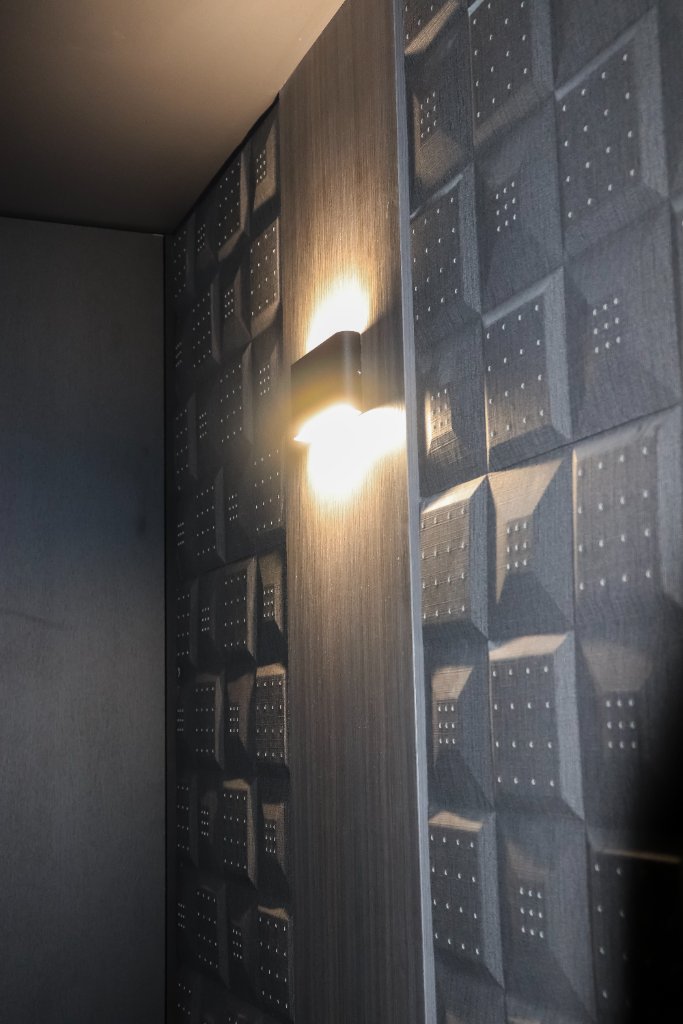

The centrepiece of this project is a purpose-built home theatre featuring acoustic wall panels, tiered leather recliner seating, a fibre optic star ceiling, and a 7.2-channel Atmos-ready system controlled by Control4. Every seat offers a premium cinematic experience.

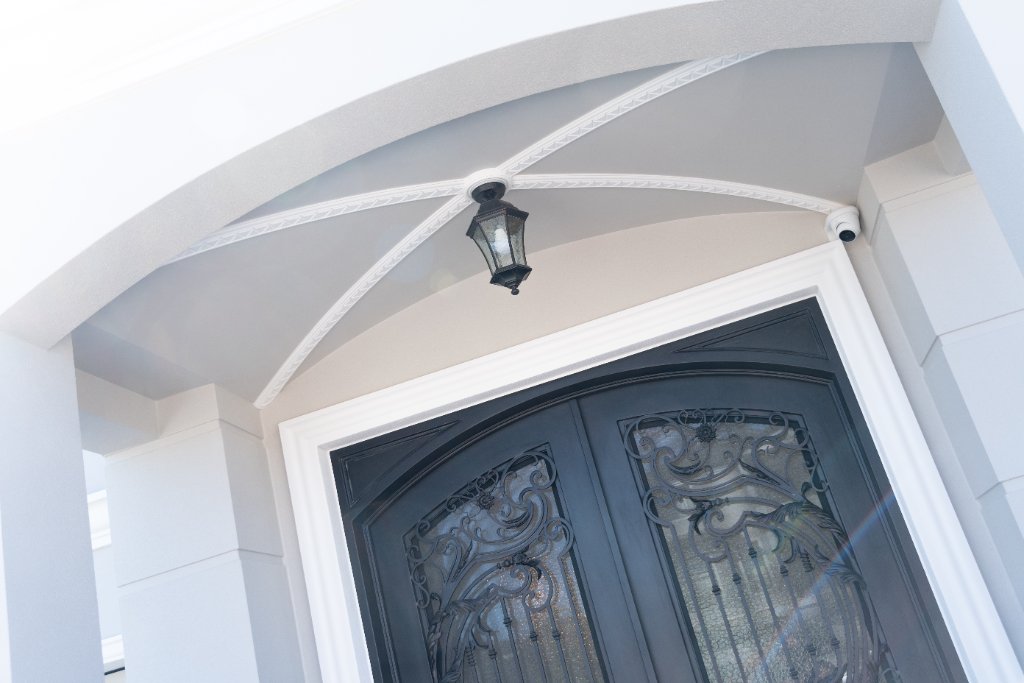

Smart Lighting
Intelligent lighting across every room

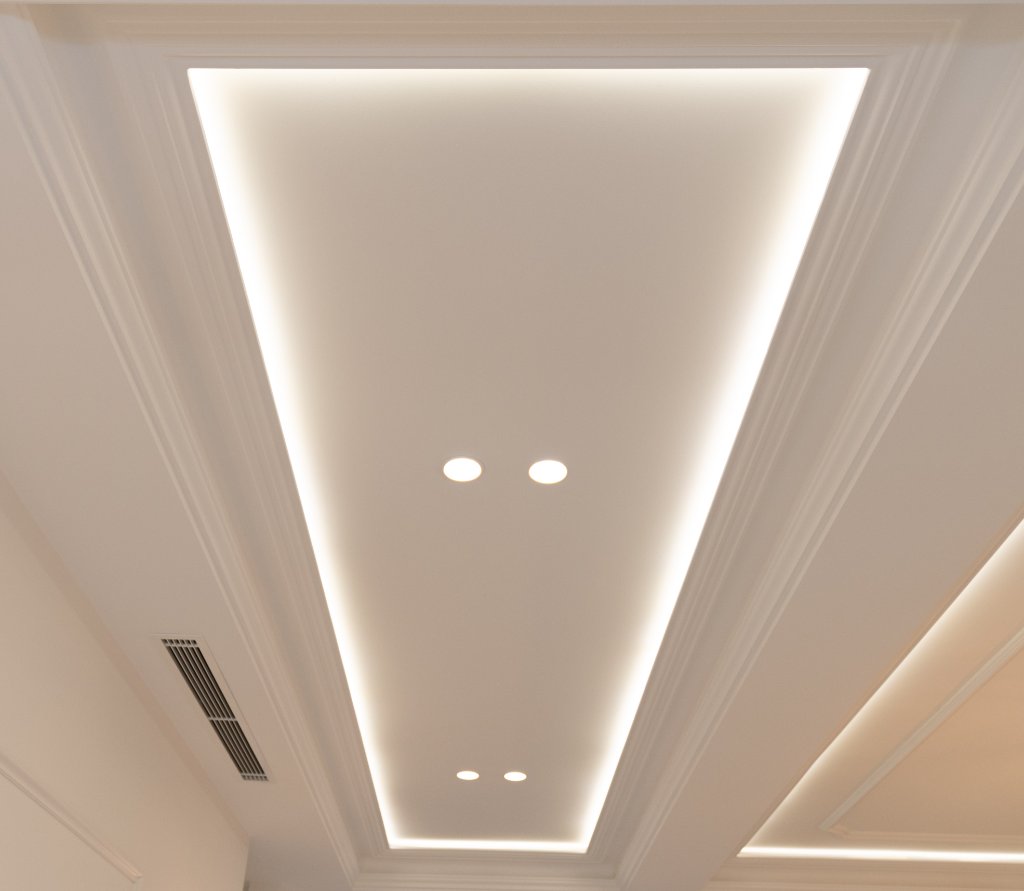

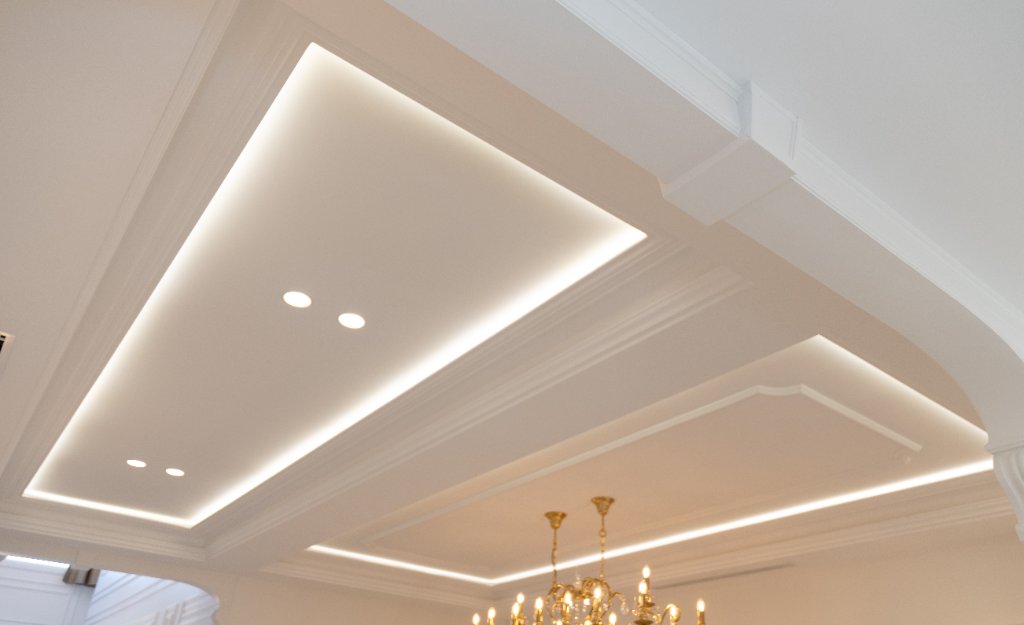

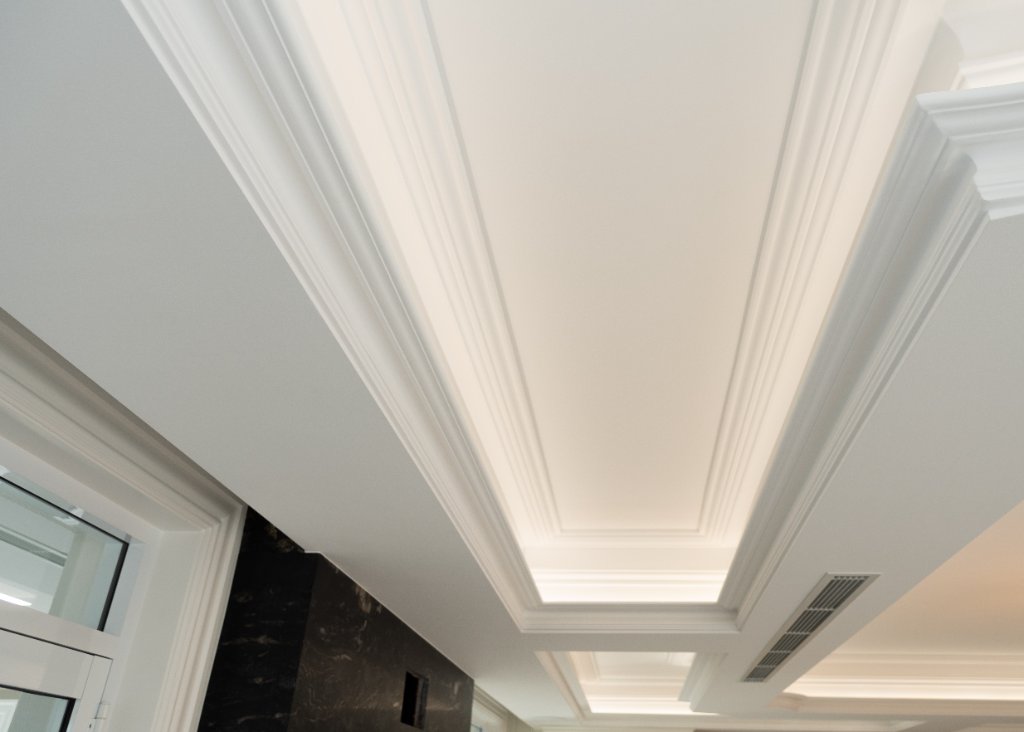

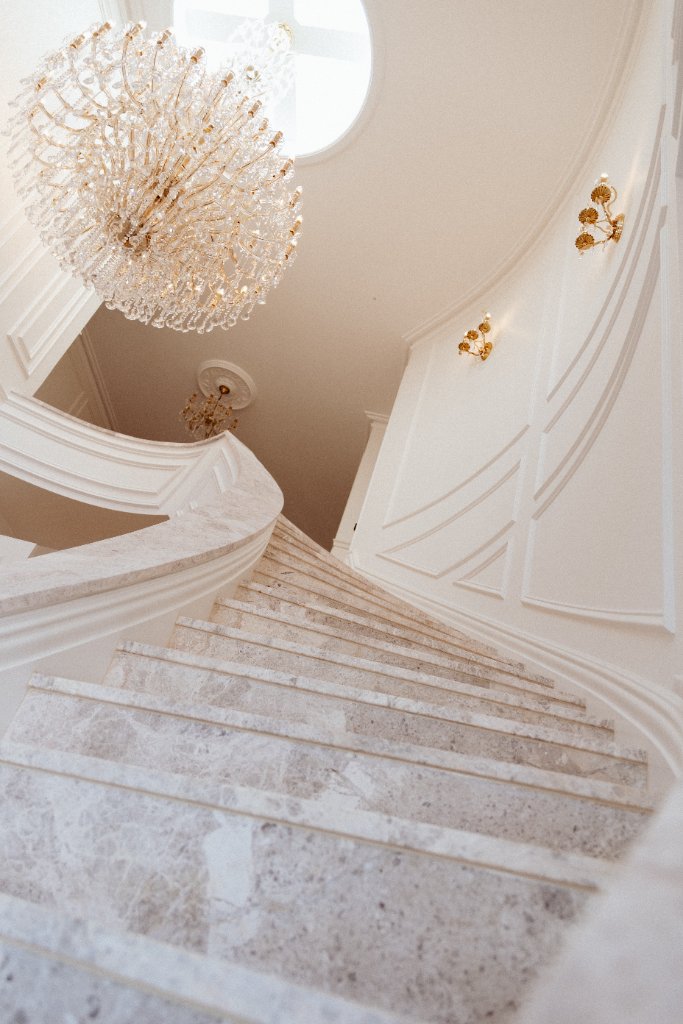

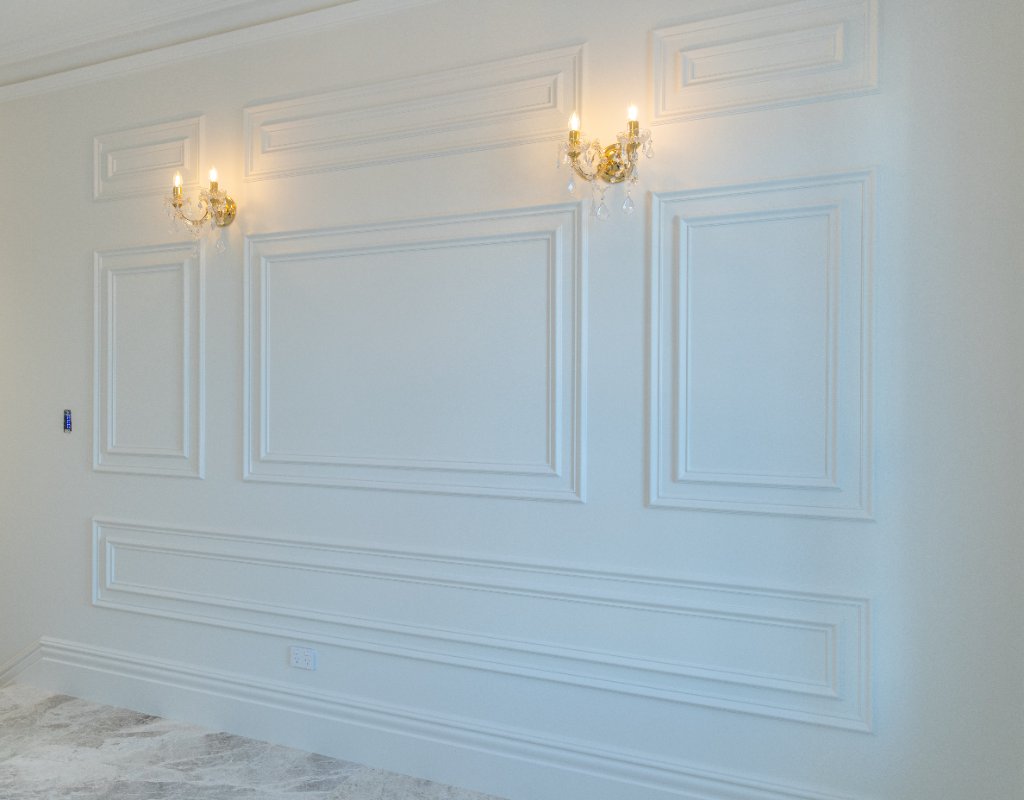

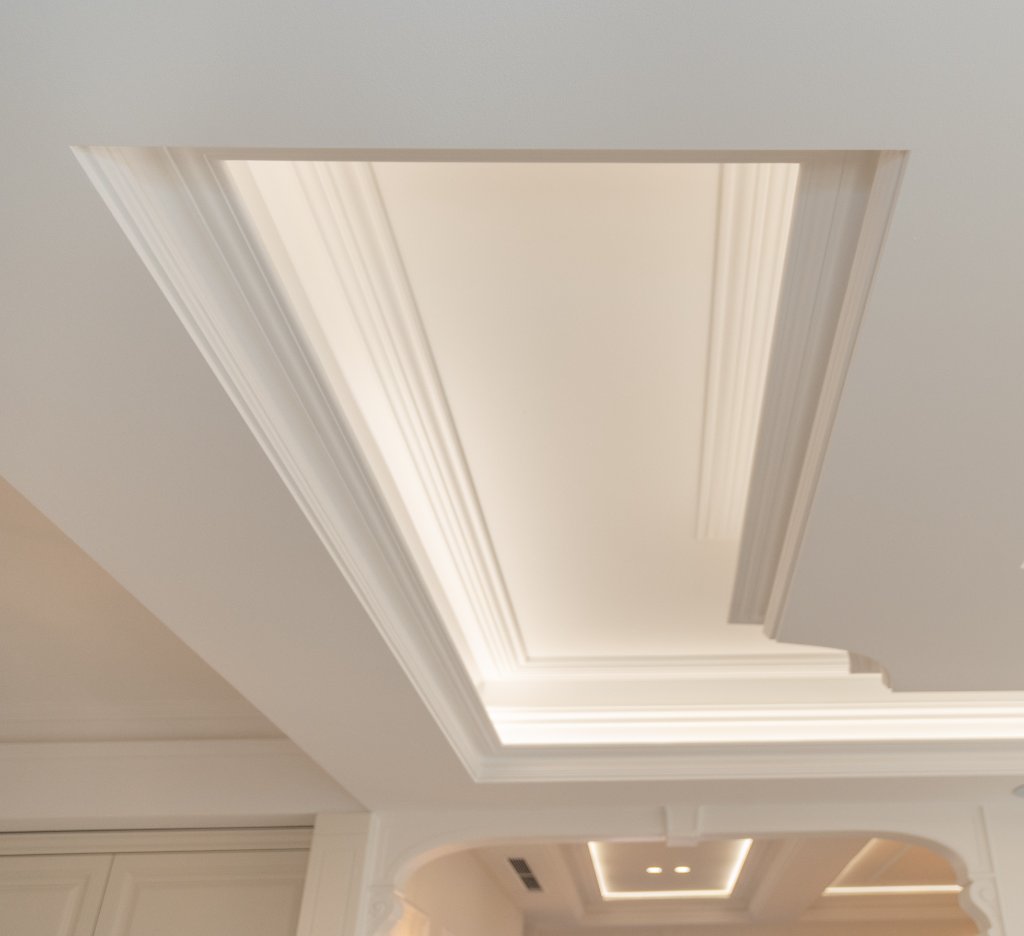

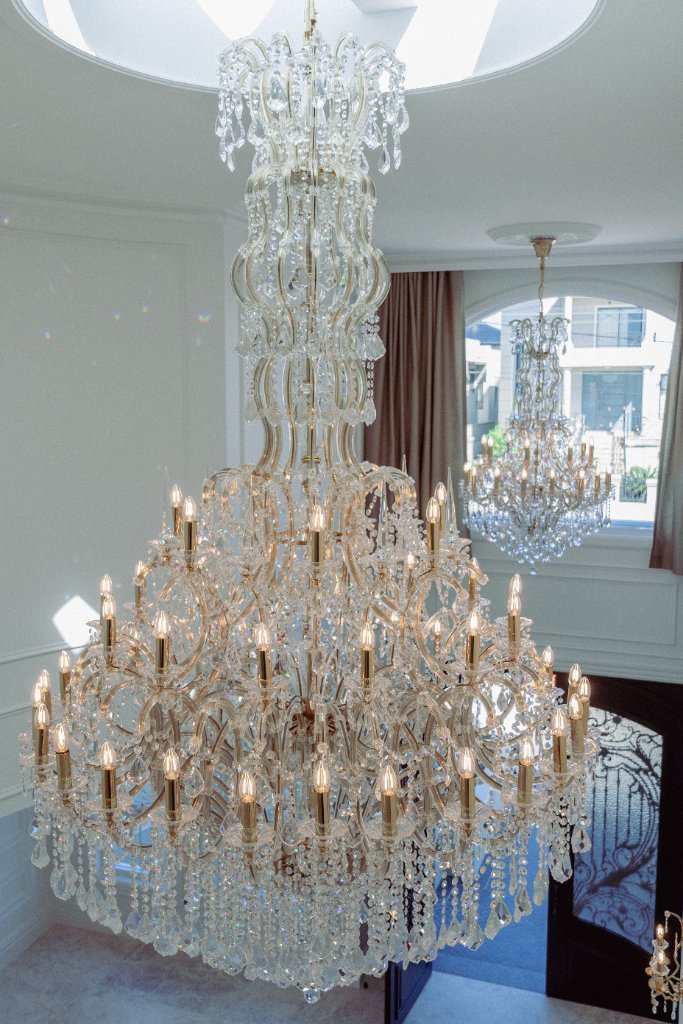

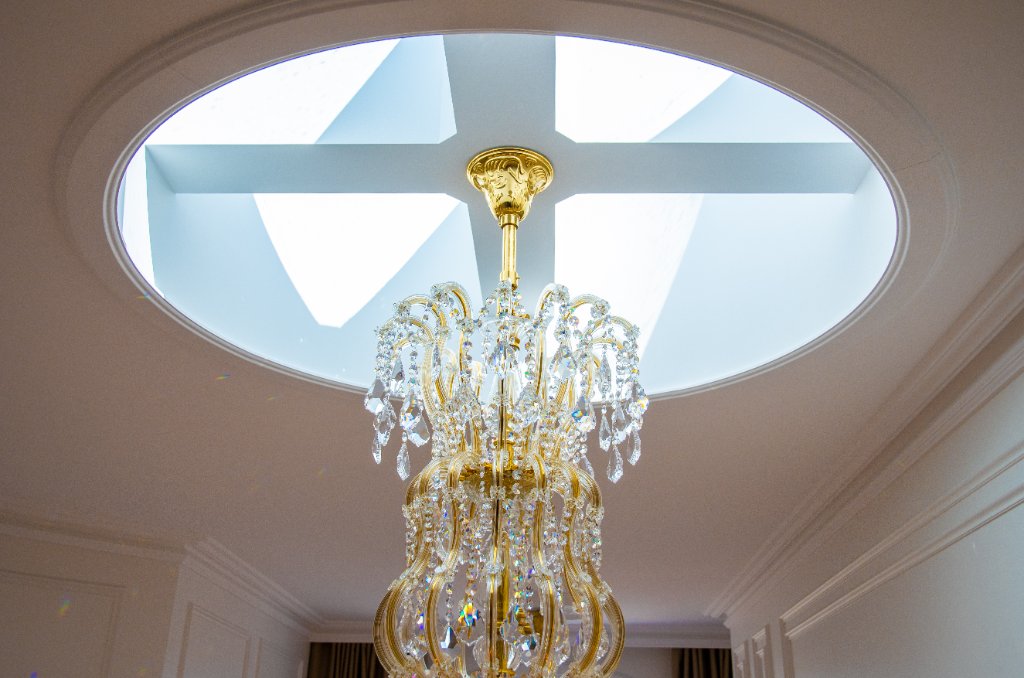

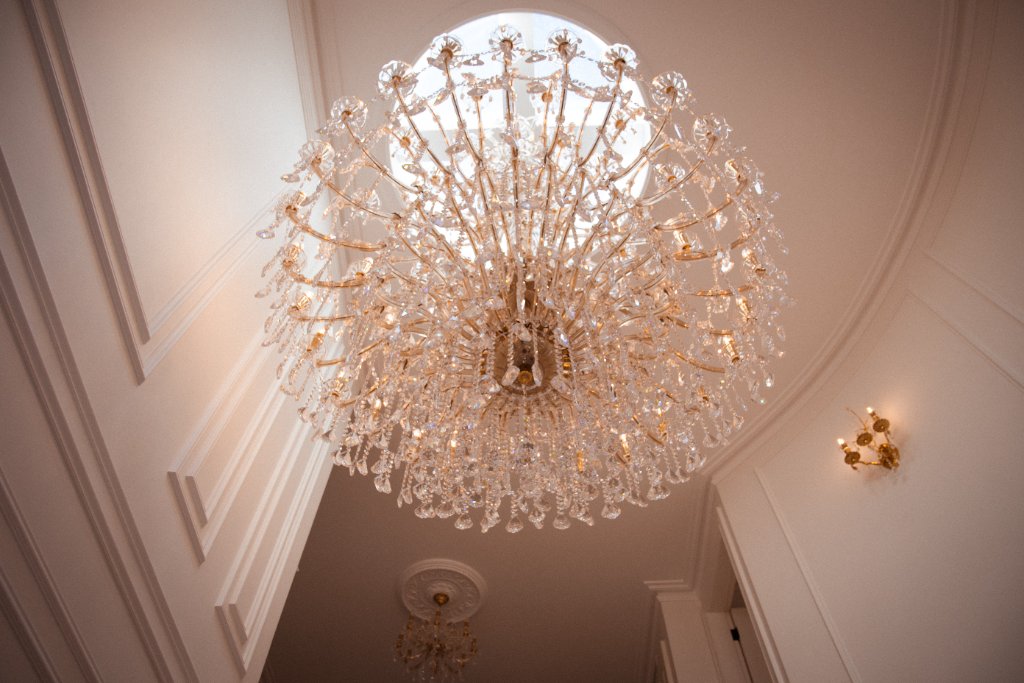

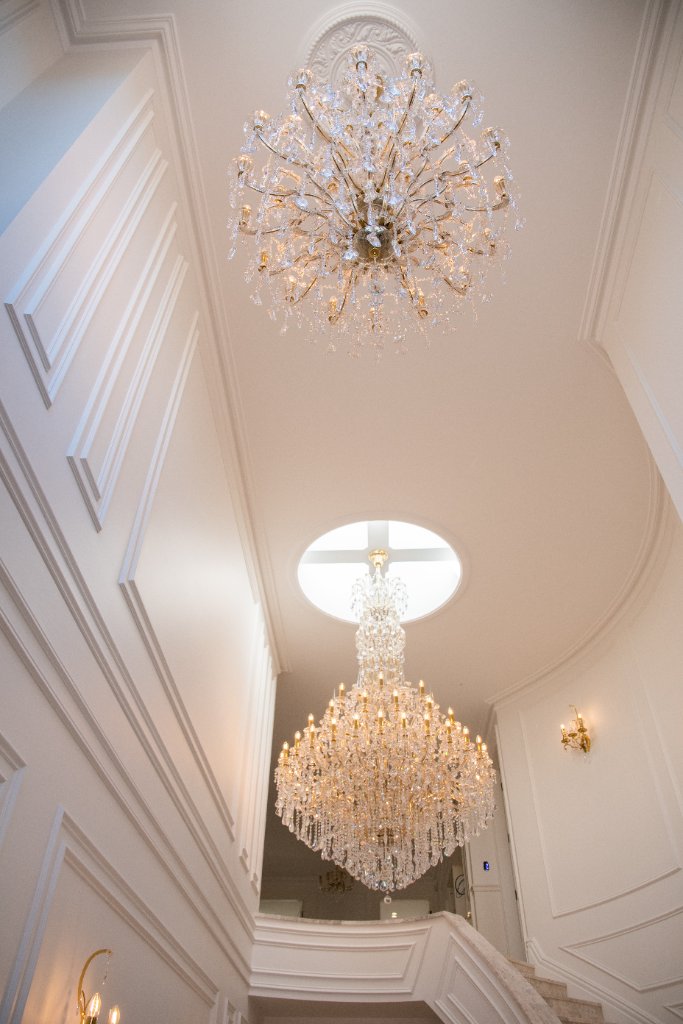

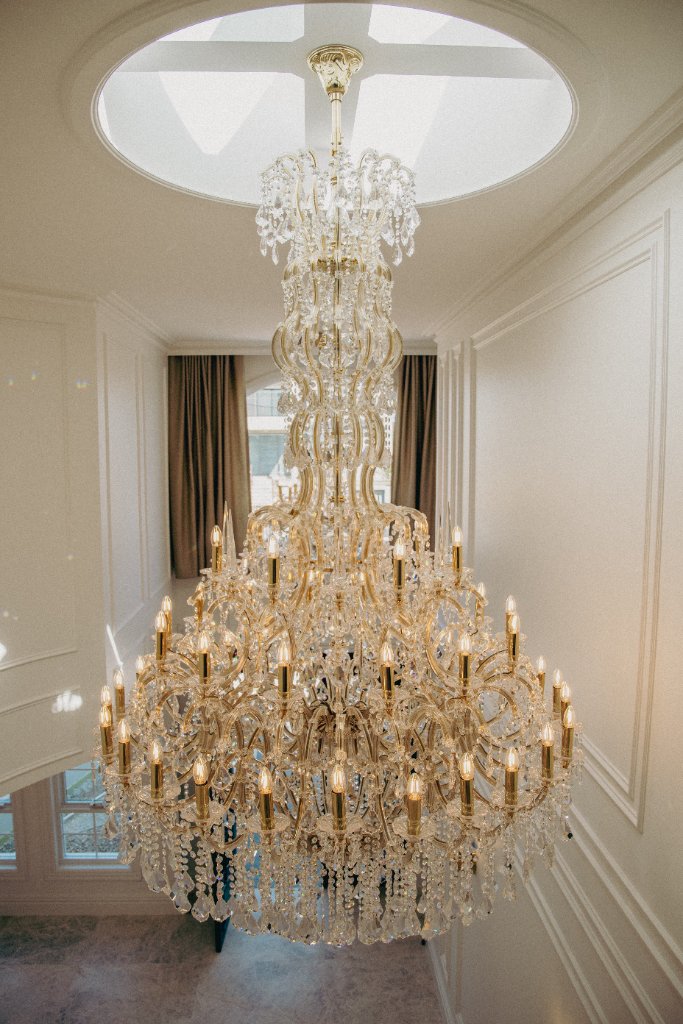

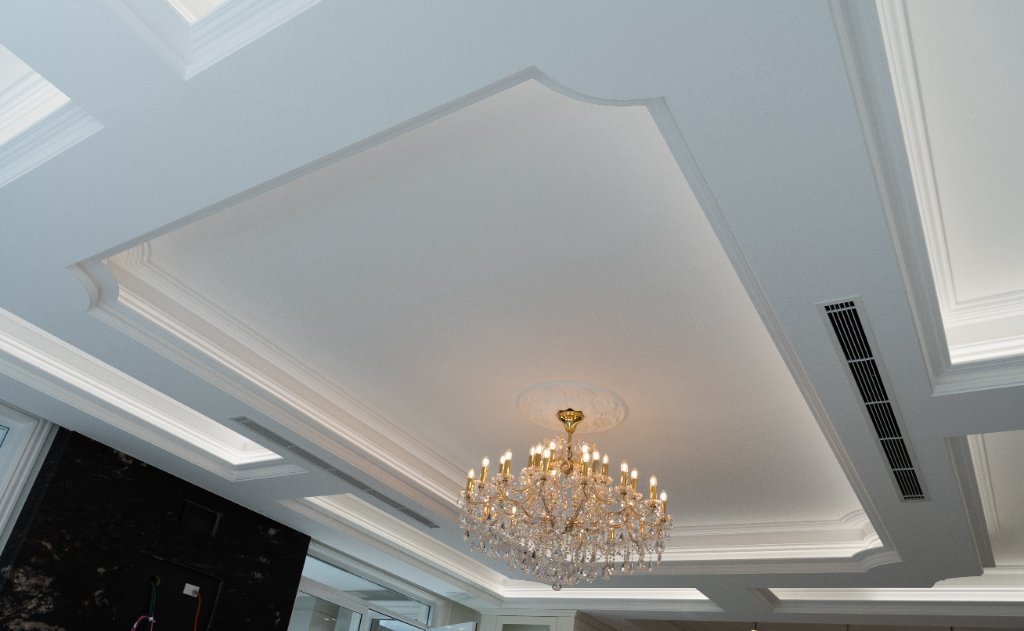

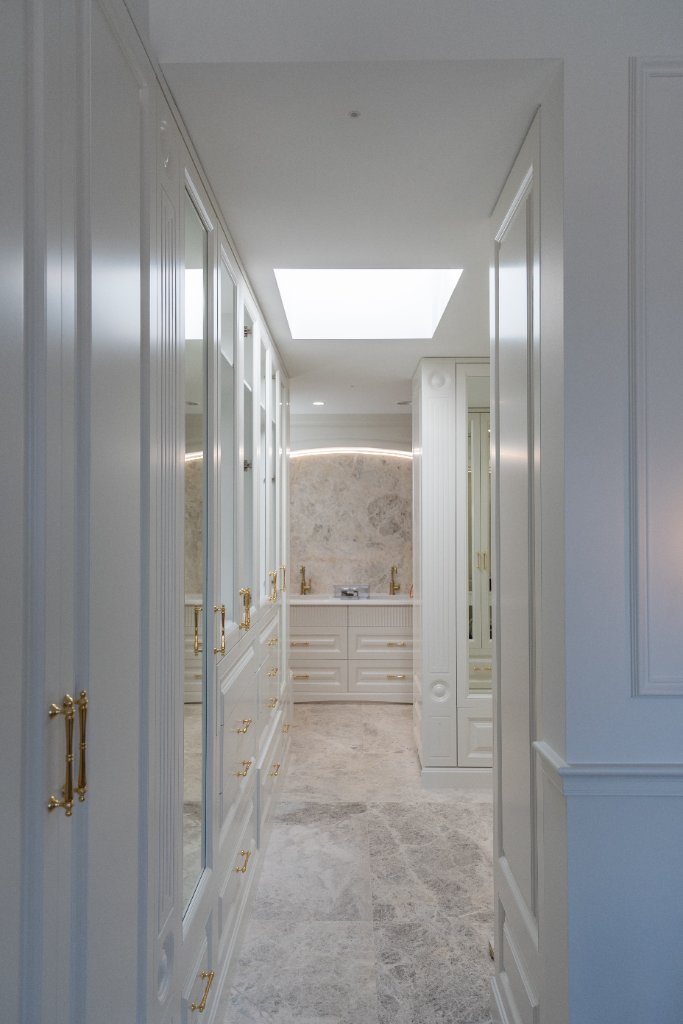

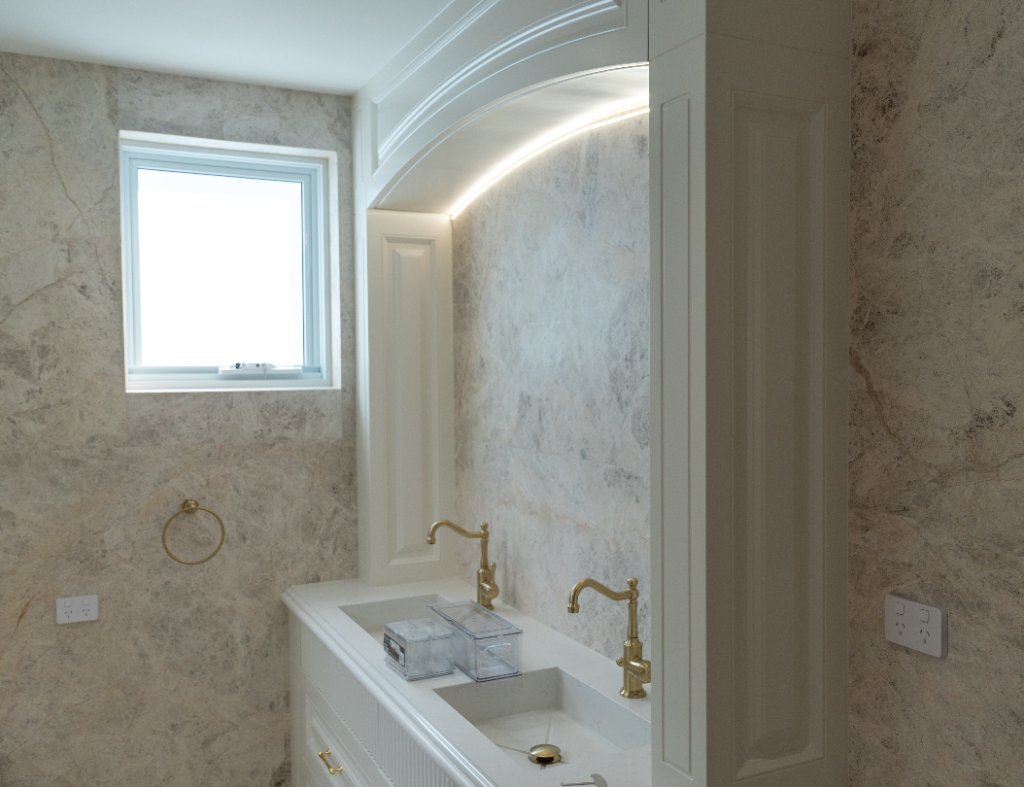

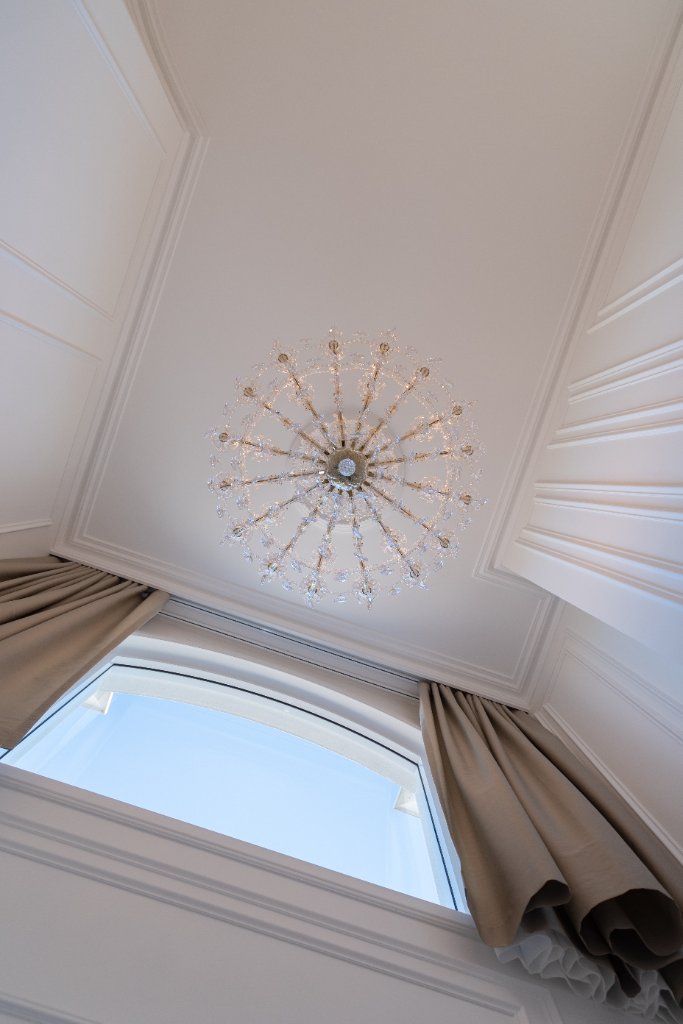

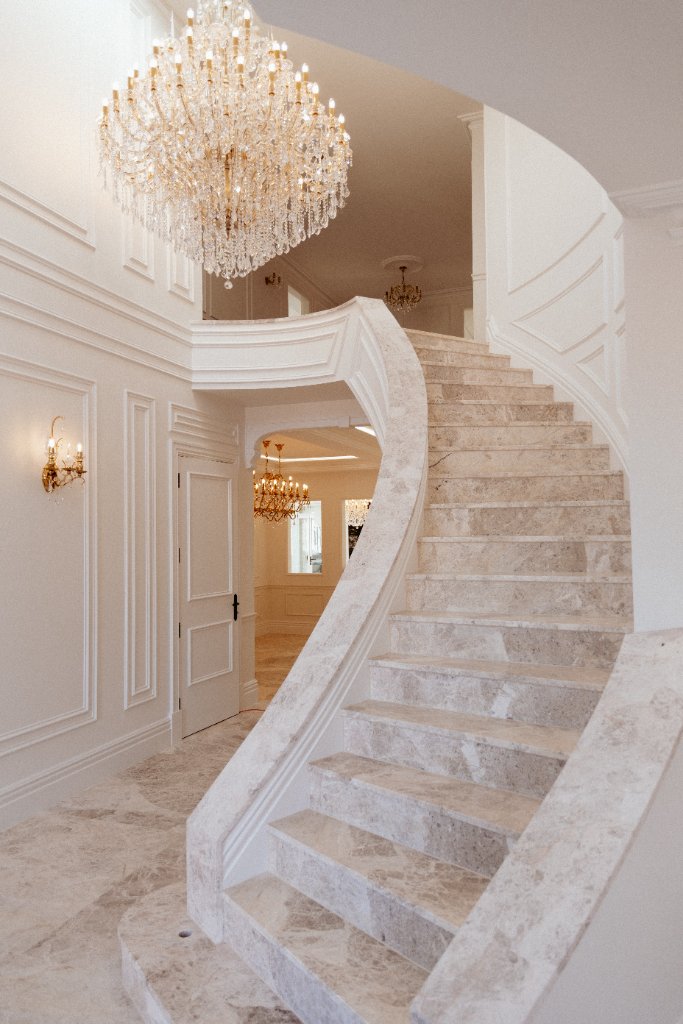

Over 80 switched loads and 32 dimmable circuits controlled via 30 custom-engraved Control4 keypads. LED cove lighting, chandeliers, and architectural downlights are all scene-programmable — from full brightness to a warm evening atmosphere.
What Was Delivered
Full System Breakdown
Multi-Room Audio & Visual
Theatre Room — 7.2ch Atmos-ready (Sony VPL-270es, Denon AVC-X6700, Triad Inwall Bronze)
Living Room — 5.1ch Surround (Denon AVRX3700, Triad IC83, Martin Logan Centre)
Alfresco — 4.2ch with in-ceiling Bronze subs
Gym — Multi-channel AV with Triad OD26 ceiling speakers
Cabana & Pool — Outdoor stereo zones (Triad OD26, Triad One Media Streamer)
Control4 6x6 HDMI Matrix with Balun distribution to all screens
Smart Lighting & Blinds
30x Control4 Configurable Keypads (KC240)
10x Control4 8-channel Relay modules (80+ switched loads)
4x Control4 8-channel Dimmer modules (32 dimmable loads)
7x Control4 Relay modules for 25 automated blinds
180 custom button engravings across the home
Full scene programming & Control4 lighting integration
Security & Surveillance
Ness M1 Gold alarm panel with XEP network module
11x Dahua 8MP varifocal turret cameras + 1x PTZ dome
Dahua 16ch NVR with 2x 4TB WD Gold Enterprise HDDs
3x 360° motion sensors, 11x beam sensors
Garage door trigger, reed switches & RF booster kit
Keypad, strike and door controller integration
Communications & Networking

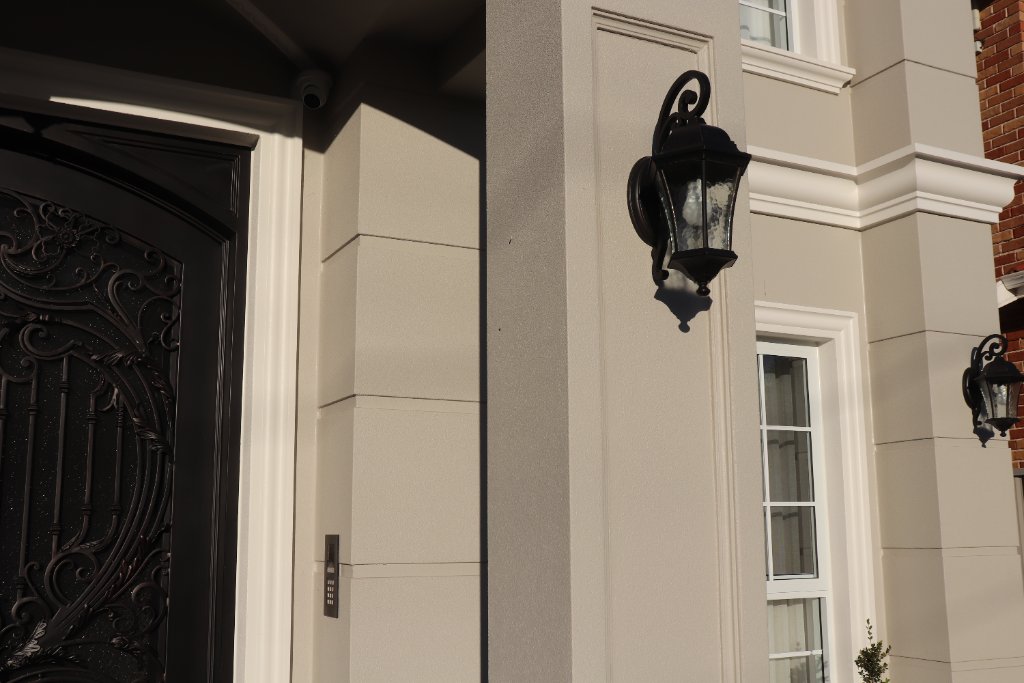

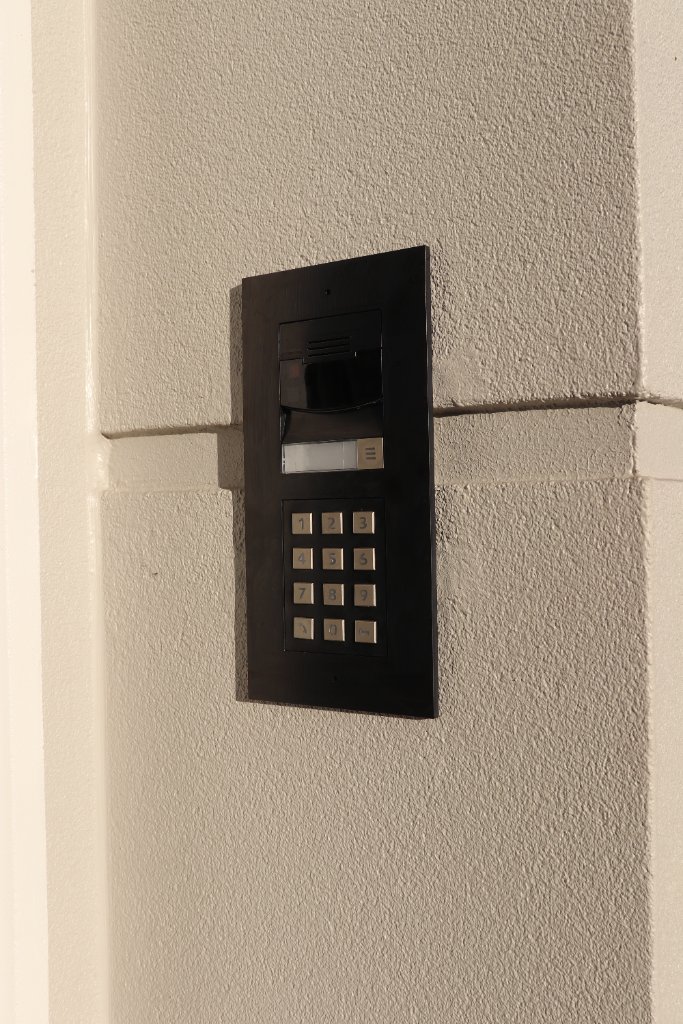

Control4 entry doorstation with keypad & intercom
10" fixed touchscreens in Kitchen/Dining/Living & Alfresco
8" fixed touchscreens in Basement & Upstairs Hallway
Pakedge Dual WAN router with HPE 48-port POE switch
7x Ubiquiti Nano HD wireless access points
Ubiquiti Cloud Controller for centralised Wi-Fi management
Comfort & Automation Core
Daikin Airbase HVAC driver & Control4 integration
Control4 EA5 home controller with 4Sight remote access
Control4 Neeo remotes throughout AV zones
32 RU equipment rack with surge protection & 3kVA UPS
OvrC remote diagnostics & monitoring

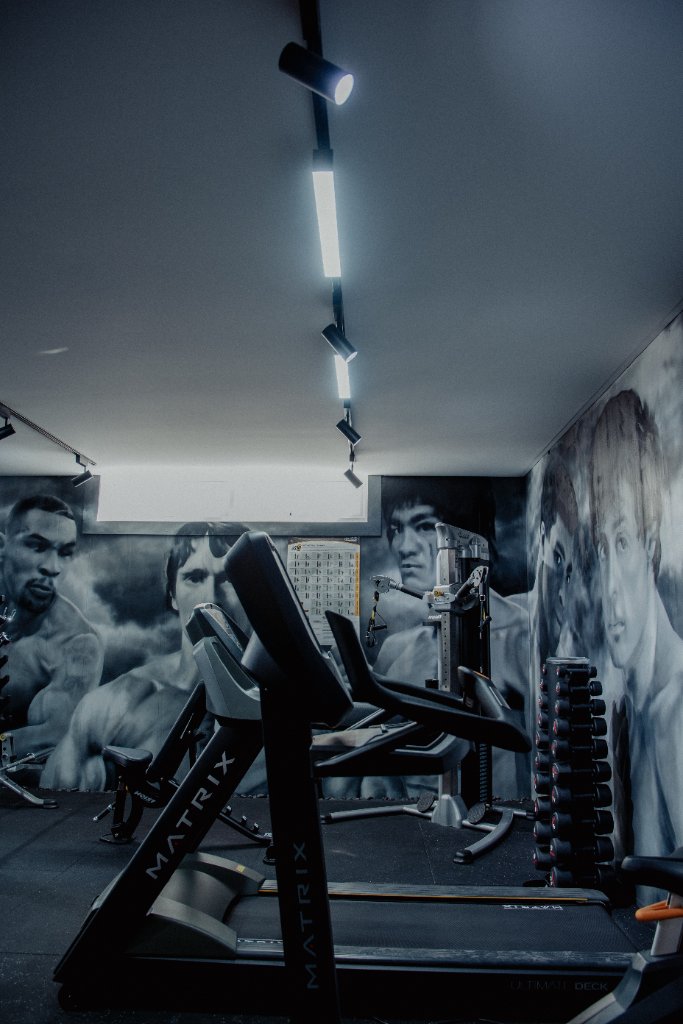

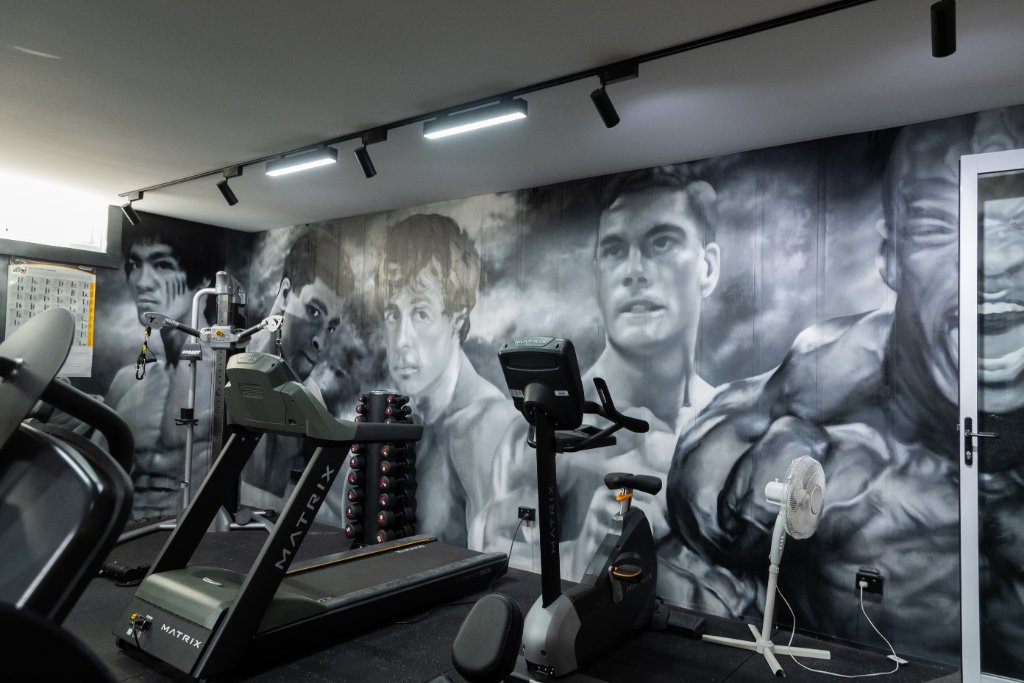

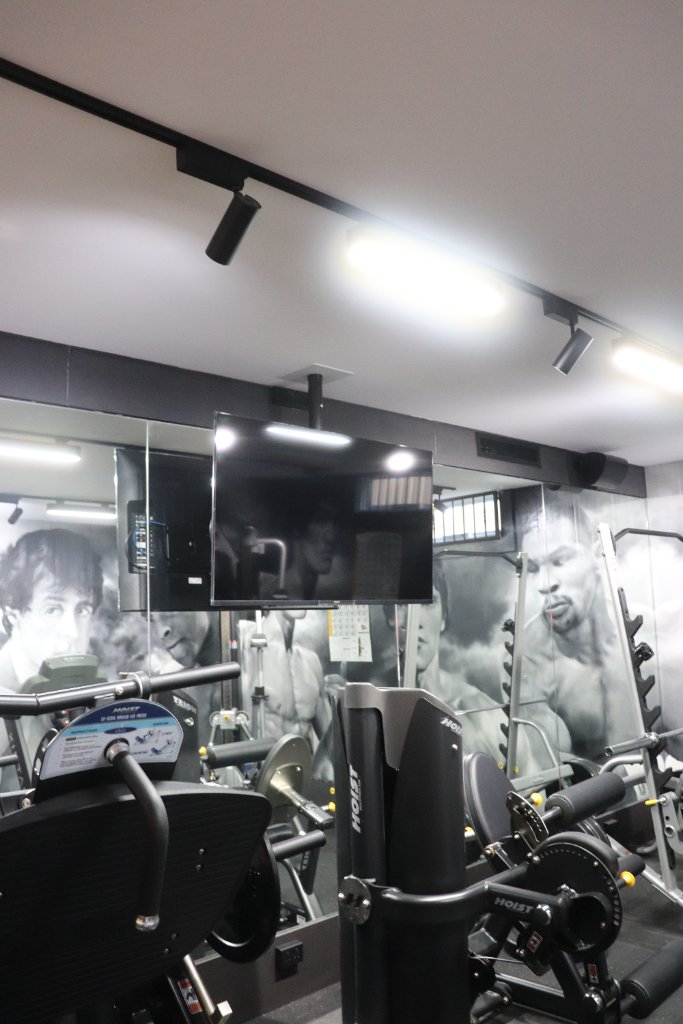

Home Gym & Recreation
A fully equipped home gym & sports room

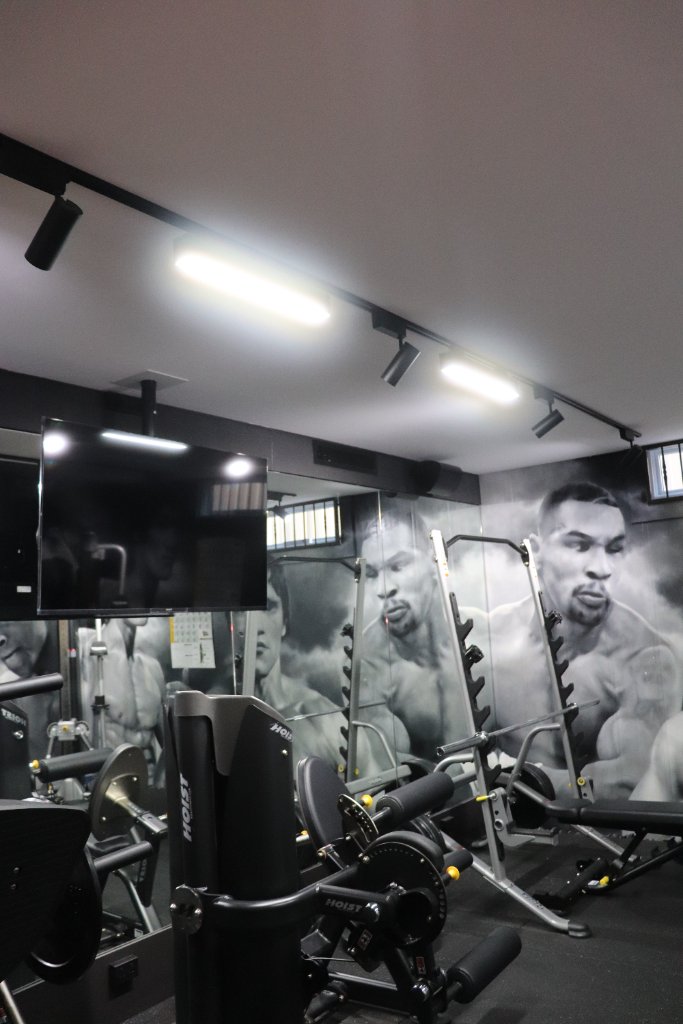

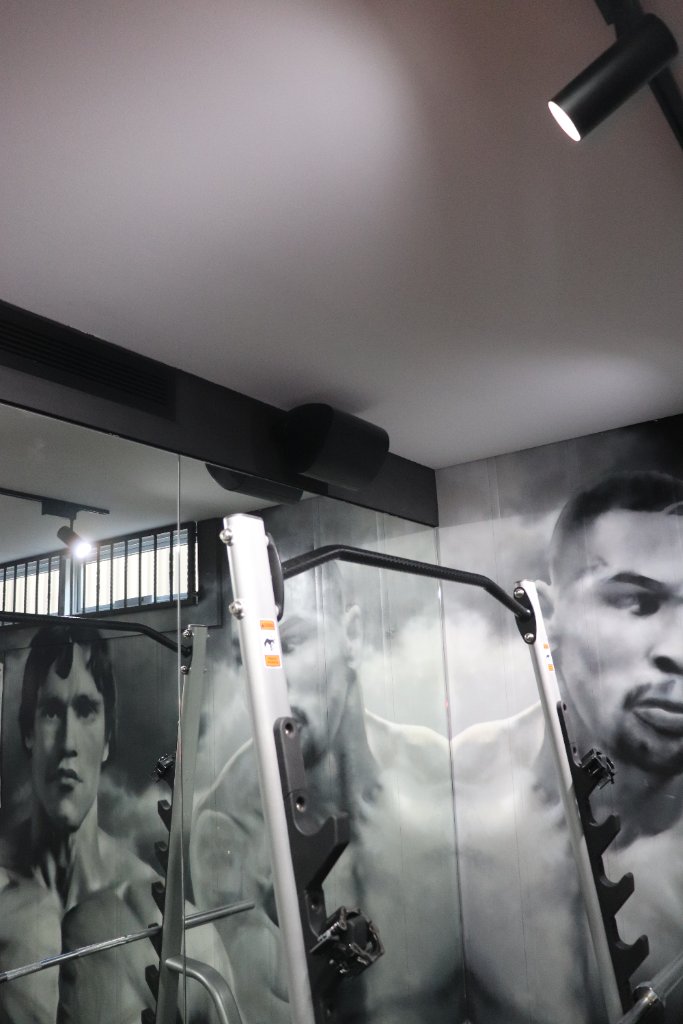

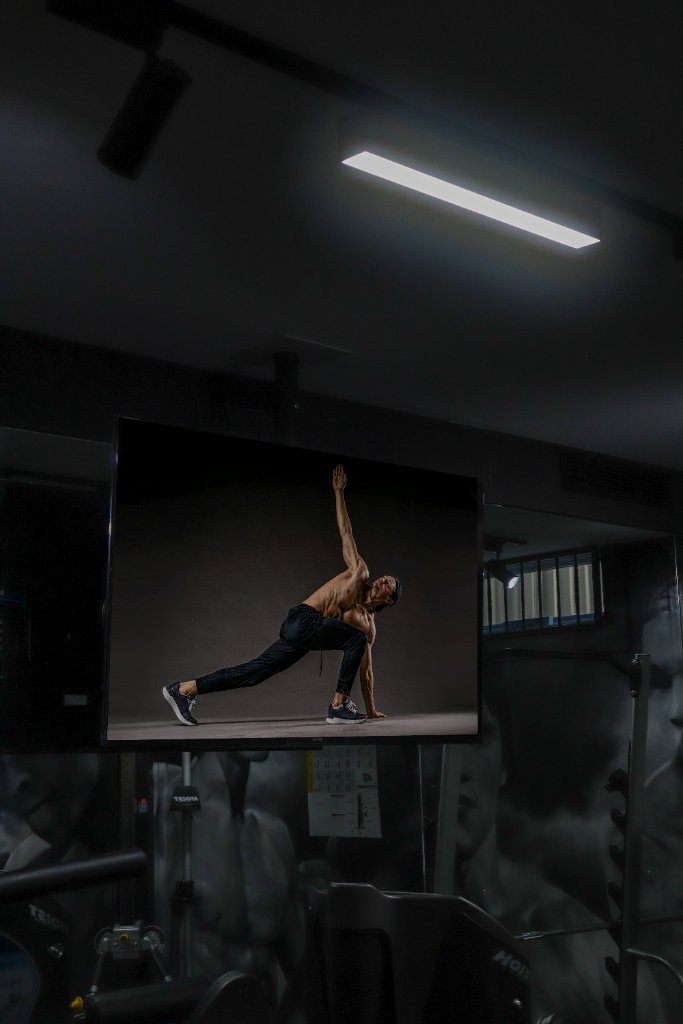

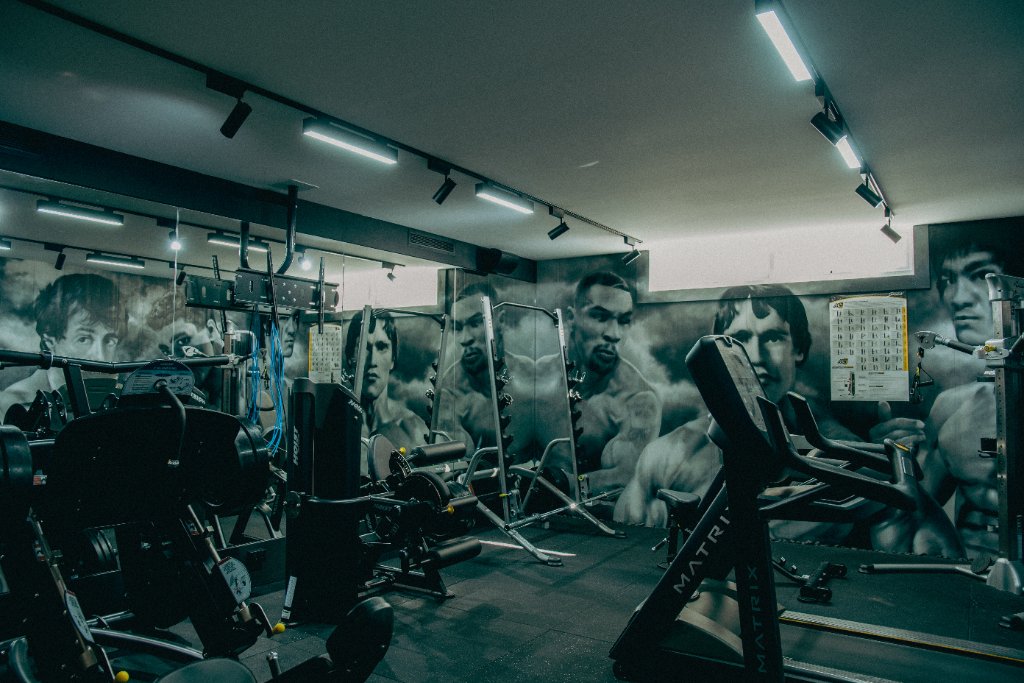

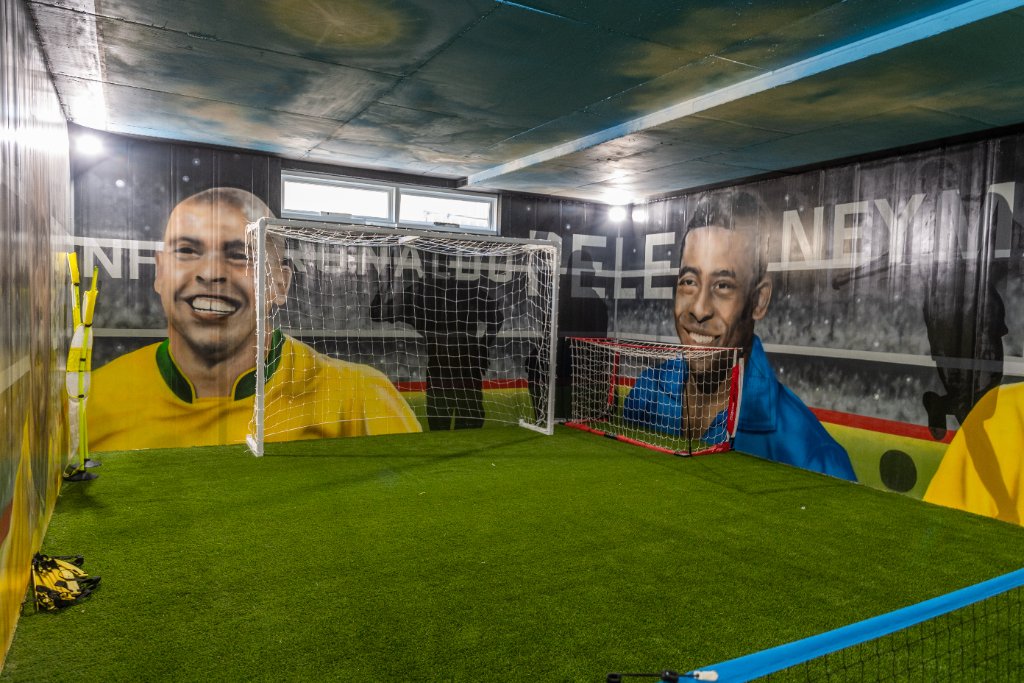

The basement level features a full commercial-grade gym with Control4-integrated AV, track lighting, an indoor soccer room, and a motorised TV mount — all controllable from the Control4 app or in-room keypads.

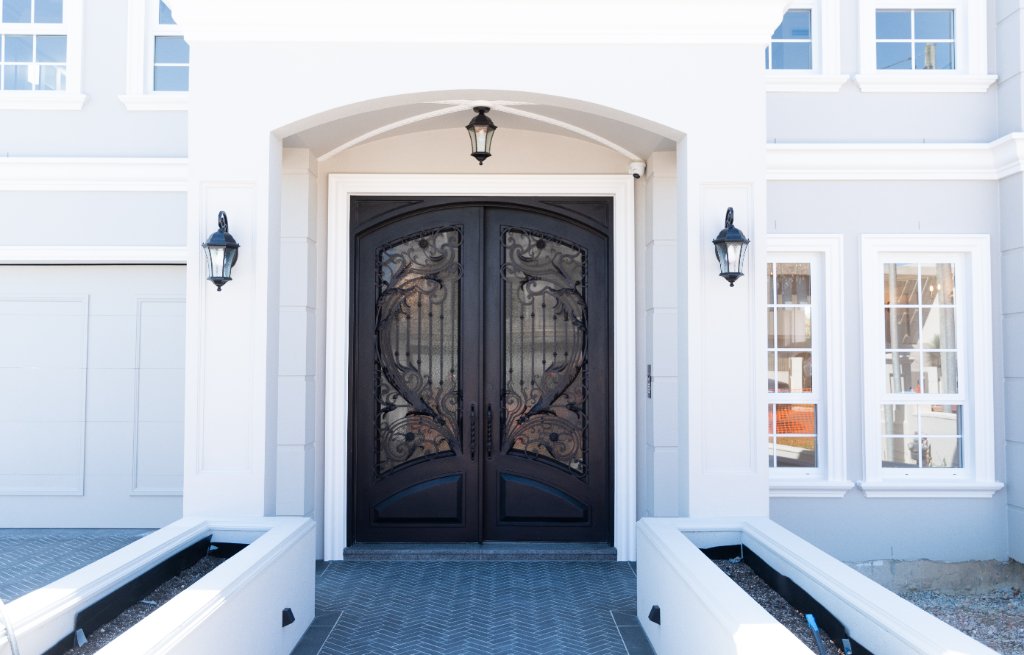

Security & Surveillance
Perimeter-to-perimeter protection

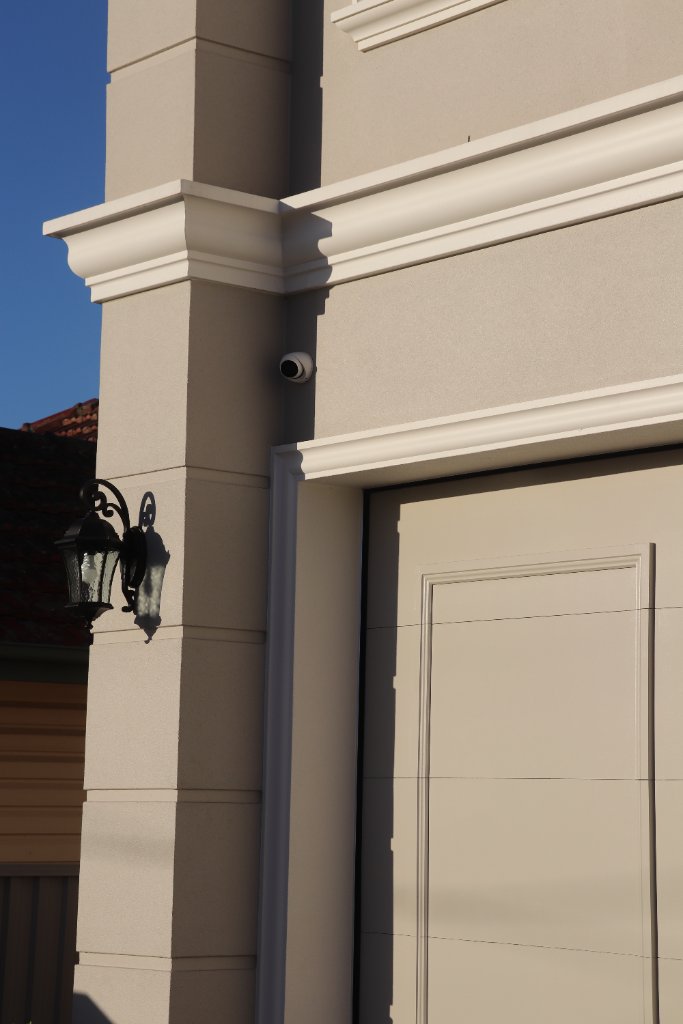

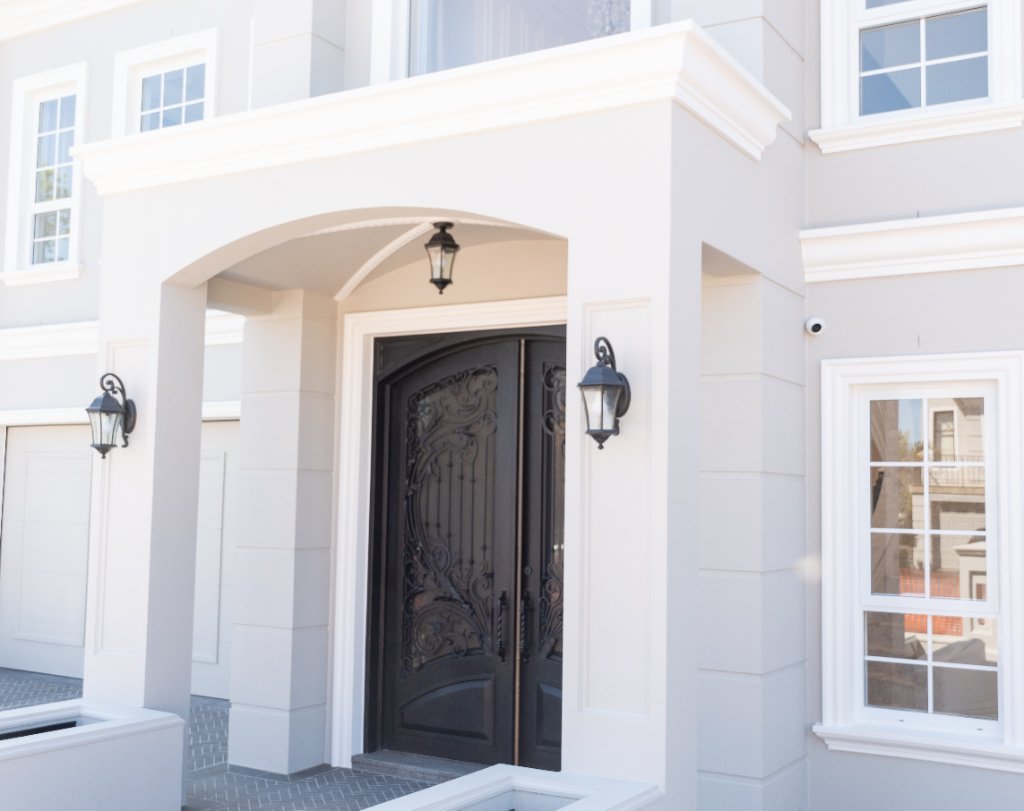

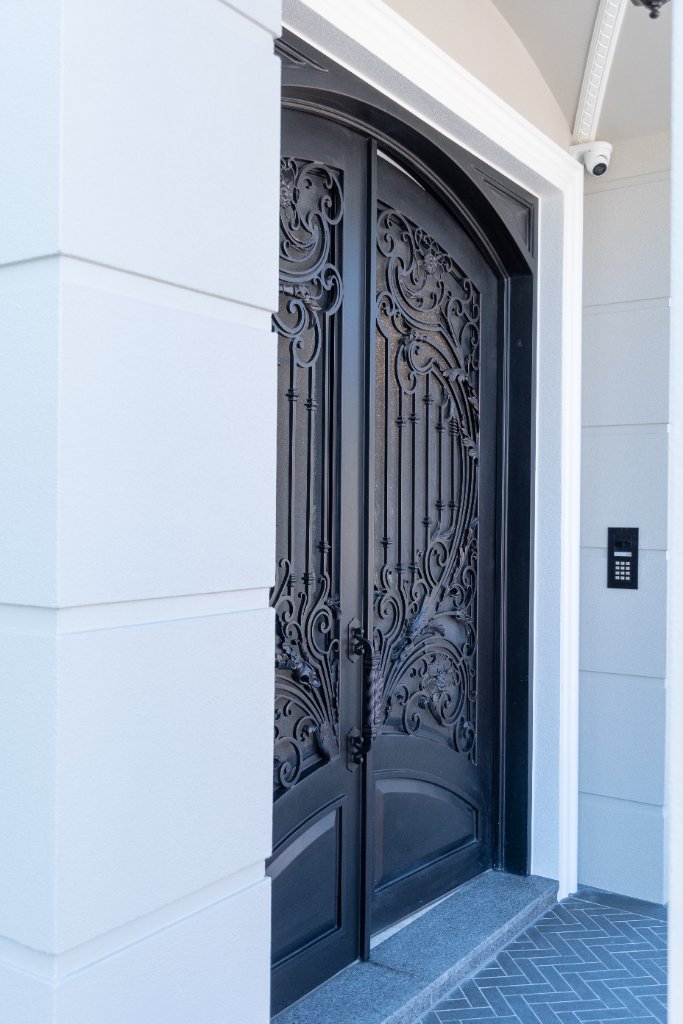

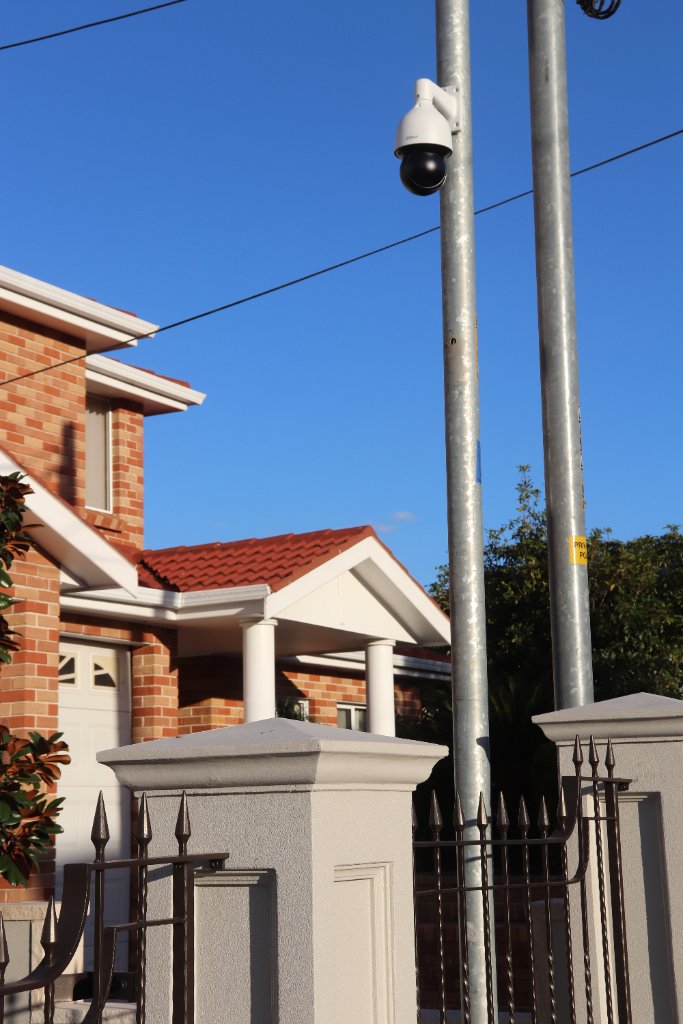

Ness M1 Gold alarm system with 11 Dahua 8MP turret cameras, one PTZ dome on a street-facing pole, plus keypad entry, motion sensors, and beam detectors at every access point — integrated with Control4 for complete visibility from any device.

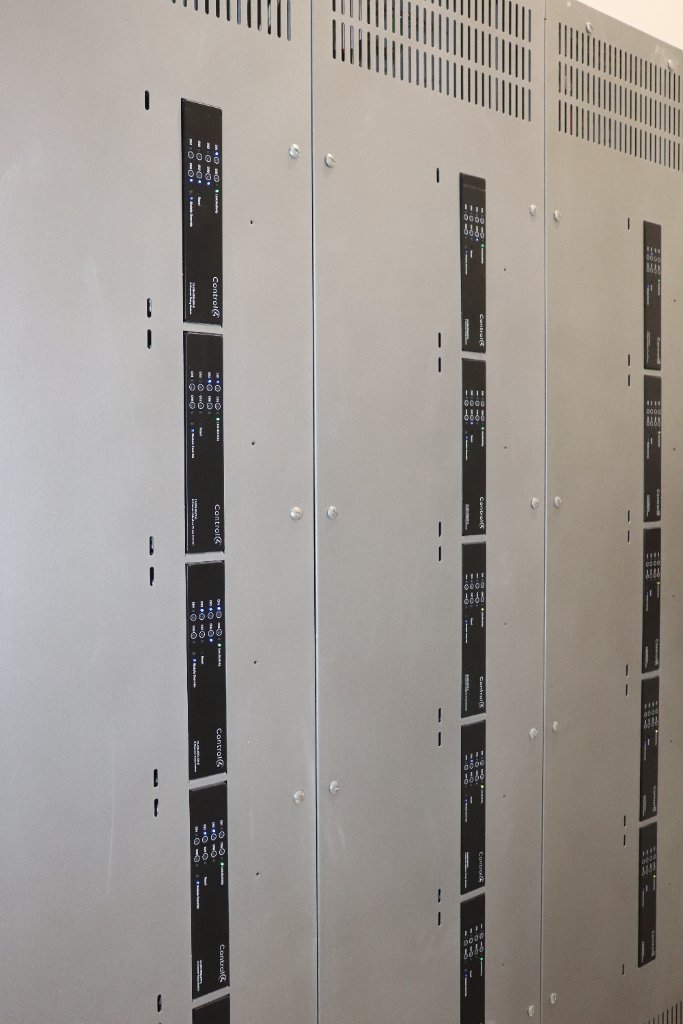

Automation Infrastructure
The brain behind the home

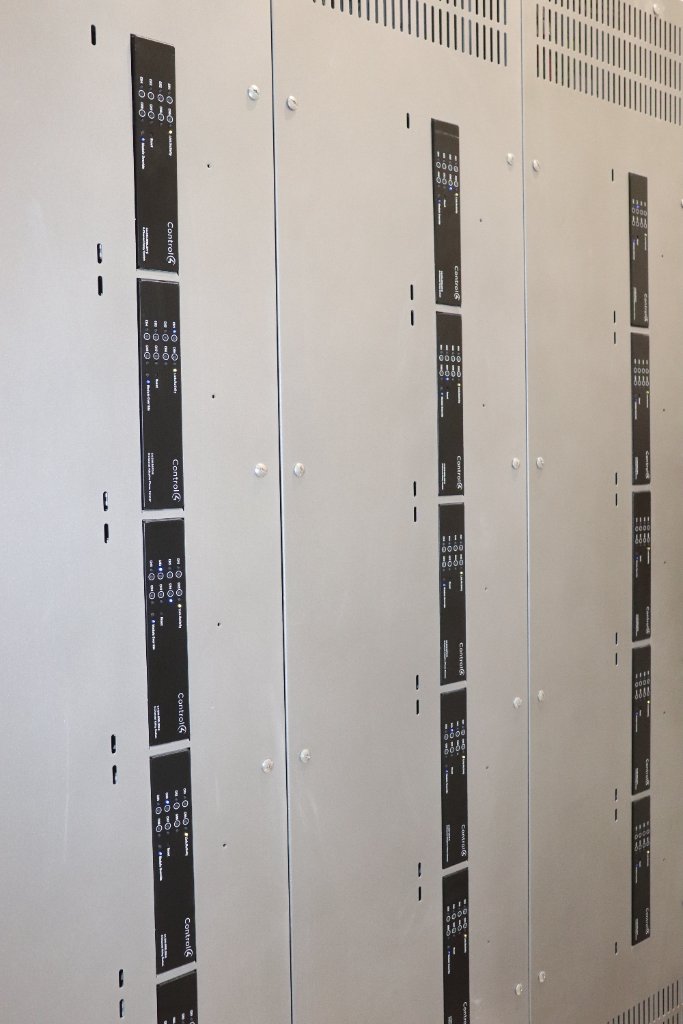

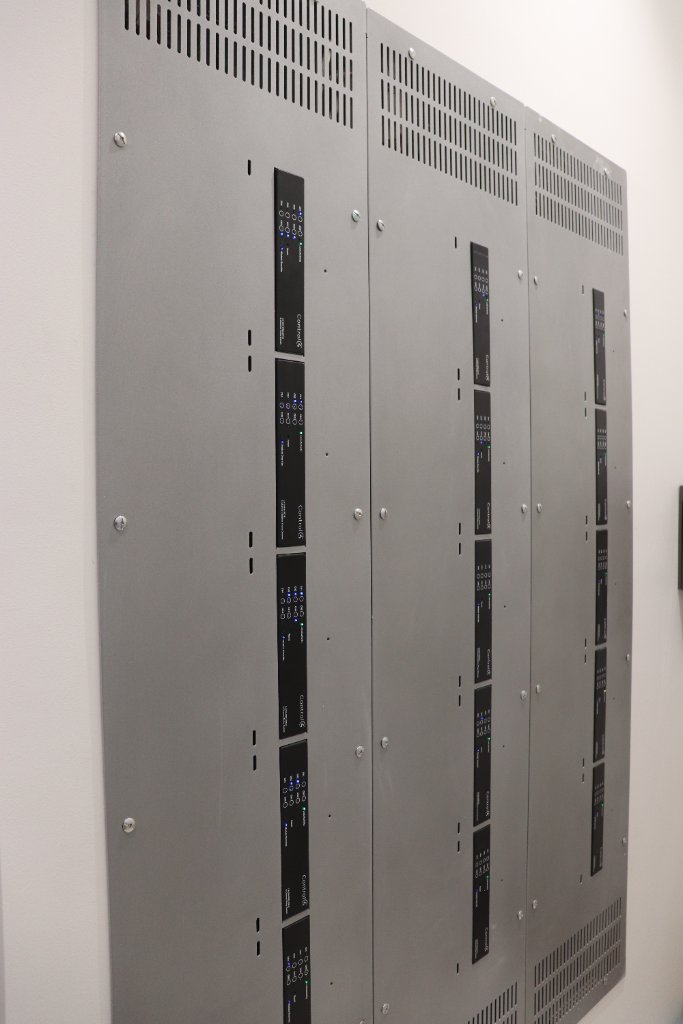

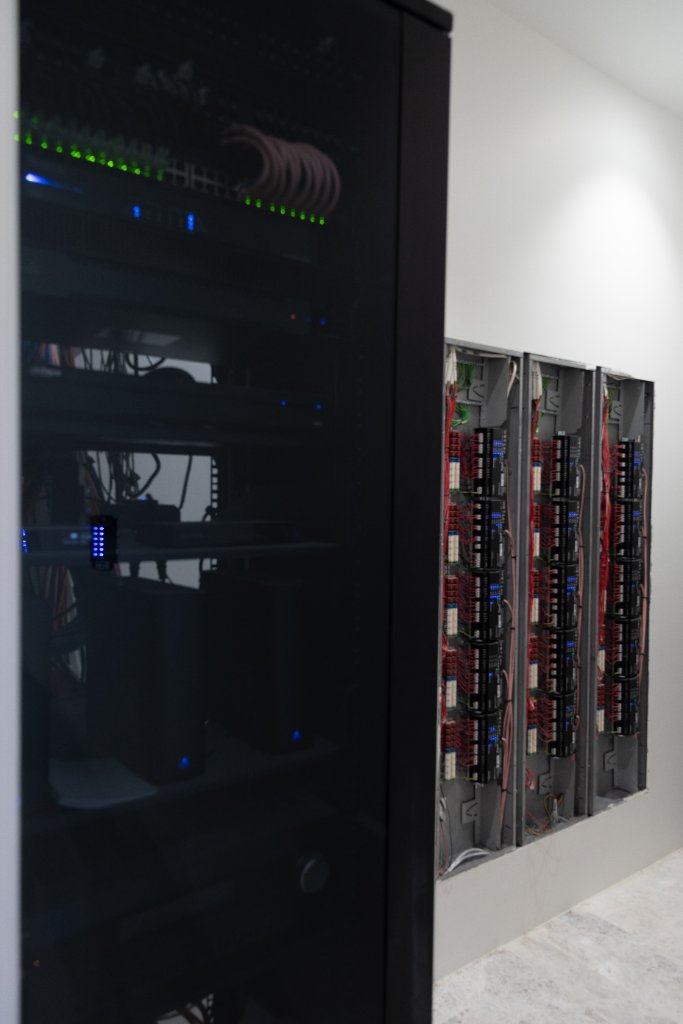

Three banks of Control4 dimmer and relay panels handle over 80 loads across the home, fed by a Pakedge dual-WAN router, HPE 48-port POE switch, and 7 Ubiquiti access points — all housed in a 32RU rack with UPS backup.
Audio & Visual Zones
Entertainment across every space
Theatre Room
7.2ch Atmos-ready surround + star ceiling
Living Room
5.1ch surround sound
Alfresco
4.2ch with in-ceiling subs
Gym
Multi-channel AV with ceiling speakers & TV
Cabana
Stereo outdoor audio
Pool
Outdoor speaker provisions
